5-794628-4

Active

TE Connectivity AMP Connectors

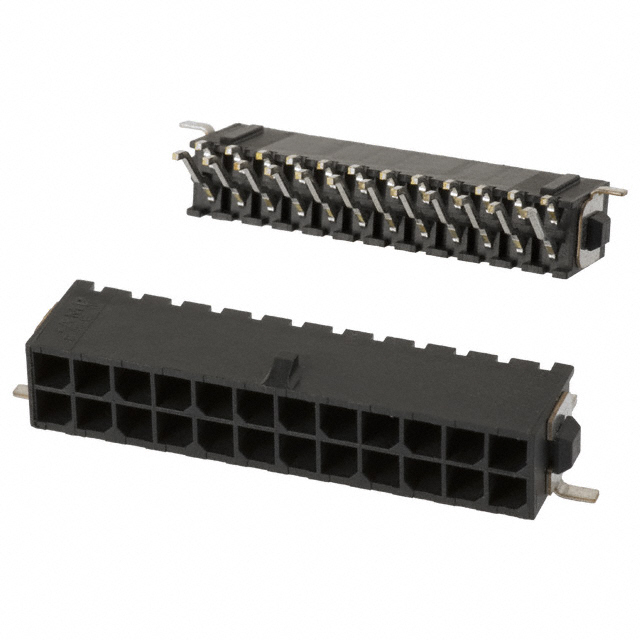

CONN HEADER SMD R/A 24POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5-794628-4

Active

TE Connectivity AMP Connectors

CONN HEADER SMD R/A 24POS 3MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	300	$ 6.19

Description

General part information

794628 Series

Connector Header Surface Mount, Right Angle 24 position 0.118" (3.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5-794628-4	794628 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Features	Solder Retention	Solder Retention
Insulation Color	Black	Black
Insulation Height	7.37 mm	7.37 mm
Insulation Height	0.29 in	0.29 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Positions	24	4 - 24
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.118 in	0.118 in
Pitch - Mating	3 mm	3 mm
Row Spacing - Mating	3 mm	3 mm
Row Spacing - Mating	0.118 in	0.118 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VDC	250 VDC

794628 Series

CONN HEADER SMD R/A 24POS 3MM

Part	Voltage Rating	Contact Material	Pitch - Mating	Pitch - Mating	Number of Positions	Insulation Material	Shrouding	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Applications	Number of Rows	Fastening Type	Current Rating (Amps)	Insulation Color	Contact Shape	Material Flammability Rating	Mounting Type	Insulation Height	Insulation Height	Contact Finish - Mating	Connector Type	Number of Positions Loaded	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating
TE Connectivity AMP Connectors 5-794628-4	250 VDC	Brass	0.118 in	3 mm	24	Nylon, Polyamide (PA)	Shrouded - 4 Wall	Solder	-40 °C	105 ░C	Tin	Male Pin	2.54 µm	100 µin	Board to Cable/Wire	General Purpose	2	Locking Ramp	Varies by Wire Gauge	Black	Square	UL94 V-0	Surface Mount, Right Angle	7.37 mm	0.29 in	Gold	Header	All	Solder Retention	15 µin	0.38 µm	3 mm	0.118 in
TE Connectivity AMP Connectors 3-794628-8	250 VDC	Brass	0.118 in	3 mm	8	Nylon, Polyamide (PA)	Shrouded - 4 Wall	Solder	-40 °C	105 ░C	Tin	Male Pin	2.54 µm	100 µin	Board to Cable/Wire	General Purpose	2	Locking Ramp	Varies by Wire Gauge	Black	Square	UL94 V-0	Surface Mount, Right Angle	7.37 mm	0.29 in	Gold	Header	All	Solder Retention	15 µin	0.38 µm	3 mm	0.118 in
TE Connectivity AMP Connectors 3-794628-6	250 VDC	Brass	0.118 in	3 mm	6	Nylon, Polyamide (PA)	Shrouded - 4 Wall	Solder	-40 °C	105 ░C	Tin	Male Pin	2.54 µm	100 µin	Board to Cable/Wire	General Purpose	2	Locking Ramp	Varies by Wire Gauge	Black	Square	UL94 V-0	Surface Mount, Right Angle	7.37 mm	0.29 in	Gold	Header	All	Solder Retention	15 µin	0.38 µm	3 mm	0.118 in
TE Connectivity AMP Connectors 3-794628-4	250 VDC	Brass	0.118 in	3 mm	4	Nylon, Polyamide (PA)	Shrouded - 4 Wall	Solder	-40 °C	105 ░C	Tin	Male Pin	2.54 µm	100 µin	Board to Cable/Wire	General Purpose	2	Locking Ramp	Varies by Wire Gauge	Black	Square	UL94 V-0	Surface Mount, Right Angle	7.37 mm	0.29 in	Gold	Header	All	Solder Retention	15 µin	0.38 µm	3 mm	0.118 in
TE Connectivity AMP Connectors 1-794628-2	250 VDC	Brass	0.118 in	3 mm	12	Nylon, Polyamide (PA)	Shrouded - 4 Wall	Solder	-40 °C	105 ░C	Tin-Lead	Male Pin	2.54 µm	100 µin	Board to Cable/Wire	General Purpose	2	Locking Ramp	Varies by Wire Gauge	Black	Square	UL94 V-0	Surface Mount, Right Angle	7.37 mm	0.29 in	Gold	Header	All	Solder Retention	15 µin	0.38 µm	3 mm	0.118 in
TE Connectivity AMP Connectors 4-794628-2	250 VDC	Brass	0.118 in	3 mm	12	Nylon, Polyamide (PA)	Shrouded - 4 Wall	Solder	-40 °C	105 ░C	Tin	Male Pin	2.54 µm	100 µin	Board to Cable/Wire	General Purpose	2	Locking Ramp	Varies by Wire Gauge	Black	Square	UL94 V-0	Surface Mount, Right Angle	7.37 mm	0.29 in	Gold	Header	All	Solder Retention	15 µin	0.38 µm	3 mm	0.118 in
TE Connectivity AMP Connectors 794628-6	250 VDC	Brass	0.118 in	3 mm	6	Nylon, Polyamide (PA)	Shrouded - 4 Wall	Solder	-40 °C	105 ░C	Tin-Lead	Male Pin	2.54 µm	100 µin	Board to Cable/Wire	General Purpose	2	Locking Ramp	Varies by Wire Gauge	Black	Square	UL94 V-0	Surface Mount, Right Angle	7.37 mm	0.29 in	Gold	Header	All	Solder Retention	15 µin	0.38 µm	3 mm	0.118 in
