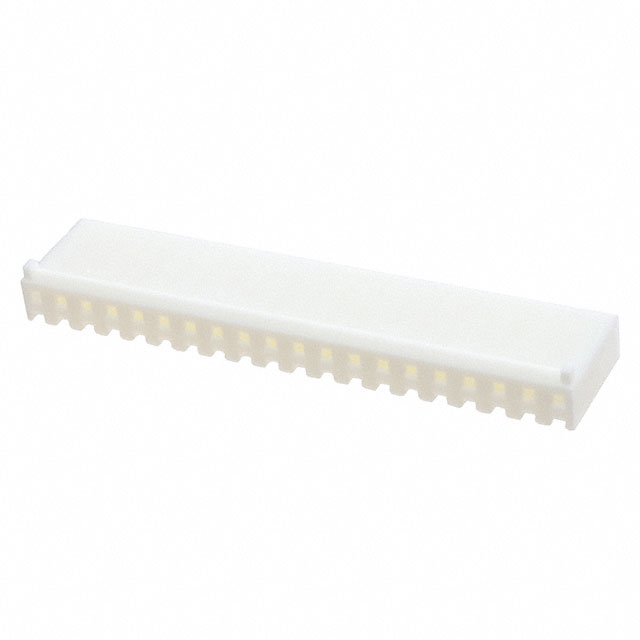

2-770849-0

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 20POS 3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2-770849-0

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 20POS 3.96MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-770849-0	770849 Series

Color	Natural	Natural
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Locking Ramp	Locking Ramp
Features	Polarizing Key	Polarizing Key
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	20	4 - 24 positions
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	0.156 in	0.156 in
Pitch [x]	3.96 mm	3.96 mm

770849 Series

CONN RCPT HSG 22POS 3.96MM

Part	Color	Number of Rows	Insulation Material	Mounting Type	Pitch [x]	Pitch [x]	Contact Type	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Features	Note	Number of Positions	Contact Termination
TE Connectivity AMP Connectors 2-770849-2	Natural	1	Nylon, Polyamide (PA)	Free Hanging (In-Line)	0.156 in	3.96 mm	Female Socket	Locking Ramp	105 ░C	-55 °C	Receptacle	Polarizing Key	Contacts Not Included	22 positions	Crimp
TE Connectivity AMP Connectors 770849-5	Natural	1	Nylon, Polyamide (PA)	Free Hanging (In-Line)	0.156 in	3.96 mm	Female Socket	Locking Ramp	105 ░C	-55 °C	Receptacle	Polarizing Key	Contacts Not Included		Crimp
TE Connectivity AMP Connectors 1-770849-7	Natural	1	Nylon, Polyamide (PA)	Free Hanging (In-Line)	0.156 in	3.96 mm	Female Socket	Locking Ramp	105 ░C	-55 °C	Receptacle	Polarizing Key	Contacts Not Included		Crimp
TE Connectivity AMP Connectors 1-770849-0	Natural	1	Nylon, Polyamide (PA)	Free Hanging (In-Line)	0.156 in	3.96 mm	Female Socket	Locking Ramp	105 ░C	-55 °C	Receptacle	Polarizing Key	Contacts Not Included	10	Crimp
TE Connectivity AMP Connectors 2-770849-4	Natural	1	Nylon, Polyamide (PA)	Free Hanging (In-Line)	0.156 in	3.96 mm	Female Socket	Locking Ramp	105 ░C	-55 °C	Receptacle	Polarizing Key	Contacts Not Included	24	Crimp
TE Connectivity AMP Connectors 1-770849-2	Natural	1	Nylon, Polyamide (PA)	Free Hanging (In-Line)	0.156 in	3.96 mm	Female Socket	Locking Ramp	105 ░C	-55 °C	Receptacle	Polarizing Key	Contacts Not Included	12	Crimp
TE Connectivity AMP Connectors 1-770849-1	Natural	1	Nylon, Polyamide (PA)	Free Hanging (In-Line)	0.156 in	3.96 mm	Female Socket	Locking Ramp	105 ░C	-55 °C	Receptacle	Polarizing Key	Contacts Not Included	11	Crimp
TE Connectivity AMP Connectors 2-770849-0	Natural	1	Nylon, Polyamide (PA)	Free Hanging (In-Line)	0.156 in	3.96 mm	Female Socket	Locking Ramp	105 ░C	-55 °C	Receptacle	Polarizing Key	Contacts Not Included	20	Crimp
TE Connectivity AMP Connectors 770849-9	Natural	1	Nylon, Polyamide (PA)	Free Hanging (In-Line)	0.156 in	3.96 mm	Female Socket	Locking Ramp	105 ░C	-55 °C	Receptacle	Polarizing Key	Contacts Not Included	9	Crimp
TE Connectivity AMP Connectors 770849-4	Natural	1	Nylon, Polyamide (PA)	Free Hanging (In-Line)	0.156 in	3.96 mm	Female Socket	Locking Ramp	105 ░C	-55 °C	Receptacle	Polarizing Key	Contacts Not Included	4	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.06
		10	$ 0.90
		25	$ 0.85
		50	$ 0.81
		100	$ 0.77
		400	$ 0.69
		800	$ 0.66
		1200	$ 0.64
		2800	$ 0.61

Description

General part information

770849 Series

20 Rectangular Connectors - Housings Receptacle Natural 0.156" (3.96mm)
