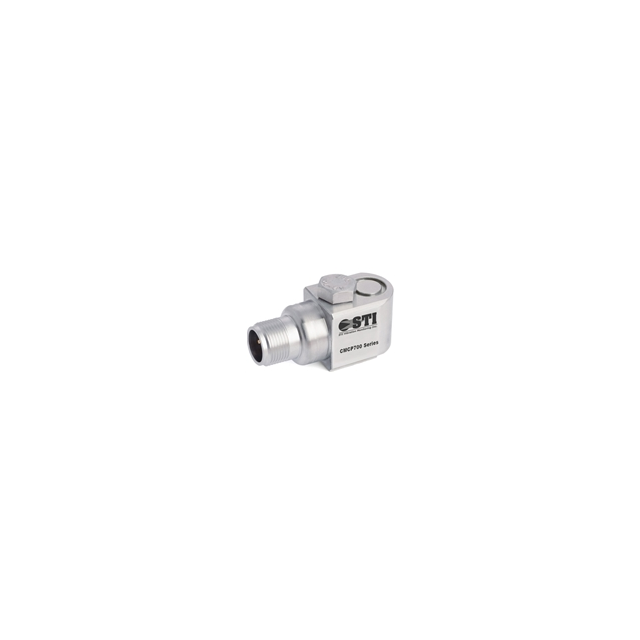

CMCP780A

Active

STI Vibration Monitoring

COMPACT ACCEL, 100 MV/G SIDE EXI

Search across all available documentation for this part.

Active

STI Vibration Monitoring

COMPACT ACCEL, 100 MV/G SIDE EXI

Technical Specifications

Parameters and characteristics commom to parts in this series

COMPACT ACCEL, 100 MV/G SIDE EXI

Part	Sensitivity (mV/g)	Axis [x]	Bandwidth [Min]	Bandwidth [Max]	Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Acceleration Range	Mounting Type
STI Vibration Monitoring CMCP780A	100 mV/g	X	0.8 Hz	19 kHz	Analog	12 V	10 VDC	Module	130 °C	-55 °C	80 g	Chassis Mount
STI Vibration Monitoring CMCP780A-M8	100 mV/g	X	0.8 Hz	19 kHz	Analog	12 V	10 VDC	Module	130 °C	-55 °C	80 g	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 260.00

General part information

Accelerometer X Axis ±80g 0.8Hz ~ 19kHz
