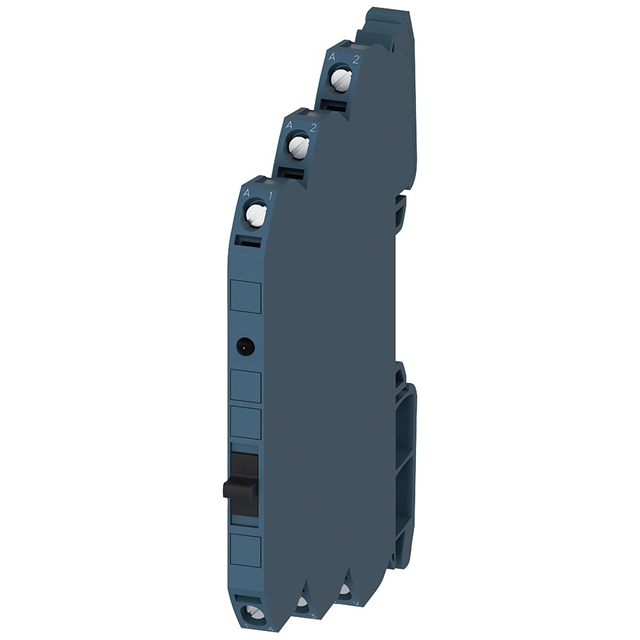

Specification	3RQ30651SM30

Approval Agency	EAC, CSA, CCC, UL
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPST-NO
Contact Rating (Current)	5 A
Features	Lighted Indicator
Form A Count	1
Load - Max Switching (Real Power)	150 W
Mounting Type	DIN Rail
Operate Time	0.2 ms
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-25 °C
Relay Type	General Purpose
Release Time	0.3 ms
Switching Voltage DC (Max)	30 VDC
Termination Style	Screw Terminal

3RQ306 Series

Part	Release Time	Load - Max Switching (Real Power)	Coil Type	Termination Style	Contact Rating (Current)	Approval Agency	Relay Type	Form A Count	Contact Form	Mounting Type	Coil Voltage	Operate Time	Switching Voltage DC (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Features
Siemens 3RQ30652SM30	0.3 ms	150 W	Non Latching	Spring Terminal	5 A	CCC CSA EAC UL	General Purpose	1	SPST-NO	DIN Rail	24 VDC	0.2 ms	30 VDC	-25 °C	60 °C	Lighted Indicator
Siemens 3RQ30651SM30	0.3 ms	150 W	Non Latching	Screw Terminal	5 A	CCC CSA EAC UL	General Purpose	1	SPST-NO	DIN Rail	24 VDC	0.2 ms	30 VDC	-25 °C	60 °C	Lighted Indicator
