Technical Specifications
Parameters and characteristics for this part
| Specification | 630-7W2-640-2NA |
|---|---|
| Backset Spacing | 0.37 in |
| Color | Black |
| Connector Layout | DA, A |
| Connector Style | Combo, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Contact Material | Copper Alloy |
| Contact Type | Signal, Power |
| Current Rating Options | 5A, 20A |
| Dielectric Material | Polyester Thermoplastic |
| Finish | Nickel Plated |
| Flange Feature | Board Side (M3) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions (Normal) | 5 |
| Number of Positions (Power) | 2 |
| Number of Positions (Total) | 7 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Part Code | 7W2 |
| Shell Material | Steel |
| Shell Size | 2 |
| Termination | Solder |
| Voltage Rating | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Tray | 250 | $ 14.52 | <6d |
CAD
3D models and CAD resources for this part
Description
General part information
630-7W2 Series

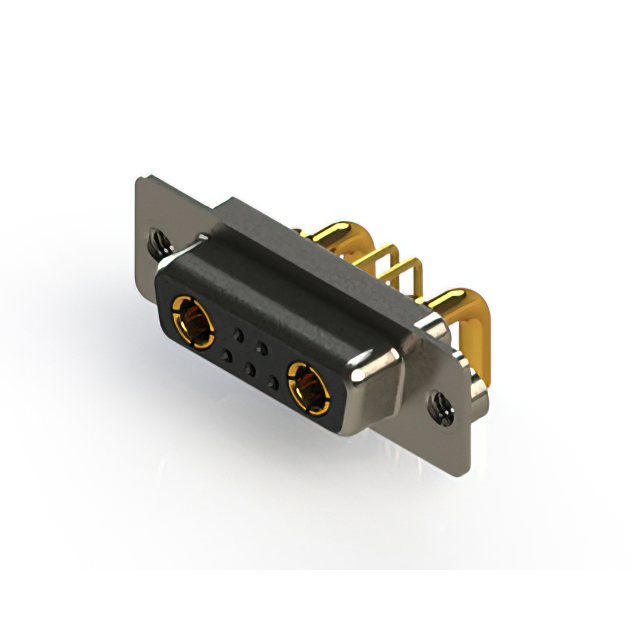

7 (5 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
