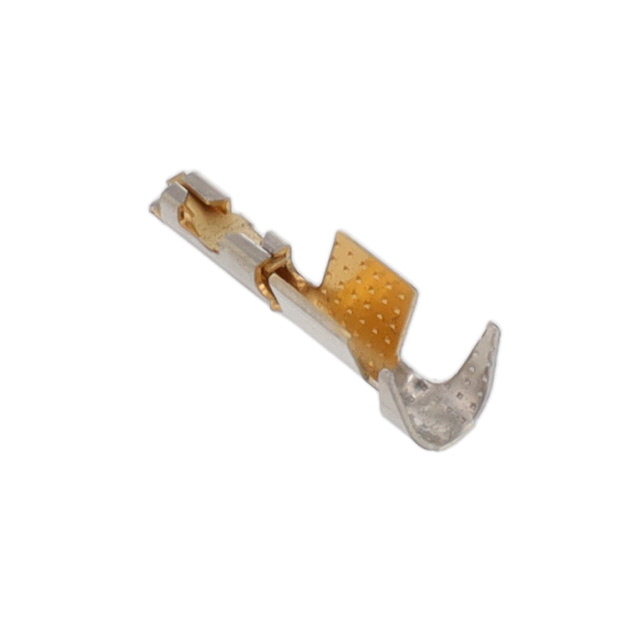

48047-000LF
ActiveAmphenol ICC (FCI)
CONN SOCKET 18-20AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
48047-000LF
ActiveAmphenol ICC (FCI)
CONN SOCKET 18-20AWG CRIMP GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 48047-000LF |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.24 | |
| 10 | $ 0.18 | |||
| 25 | $ 0.16 | |||
| 50 | $ 0.15 | |||
| 100 | $ 0.14 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.11 | |||
| 2500 | $ 0.10 | |||
Description
General part information
48047 Series
Socket Contact Gold 18-20 AWG Crimp
