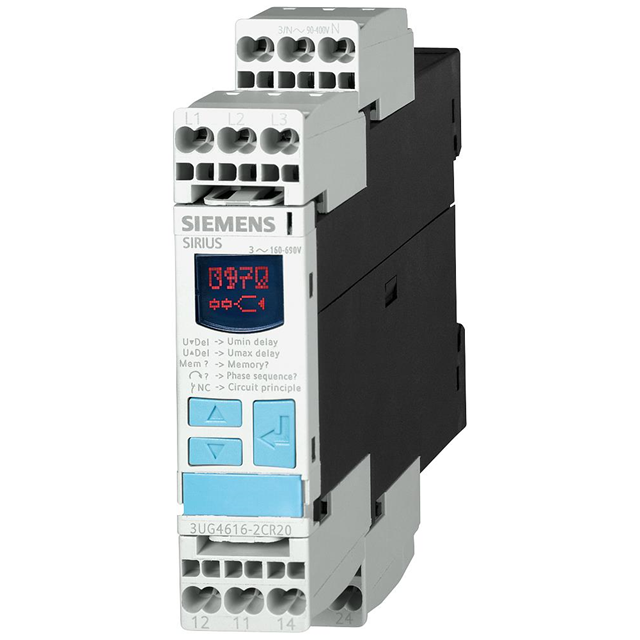

3UG46152CR20

Active

Siemens

RELAY DIGITAL MOONITORING FOR 3P

Search across all available documentation for this part.

Active

Siemens

RELAY DIGITAL MOONITORING FOR 3P

Technical Specifications

Parameters and characteristics for this part

Specification	3UG46152CR20

Delay Time [Max]	20 s
Delay Time [Min]	0.1 Sec
Features	Automatic Reset
Function	Overvoltage, Phase Sequence, Undervoltage, Phase Loss
Mounting Type	DIN Rail
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Termination Style	Spring Terminal
Trip Range [Max]	690 VAC
Trip Range [Min]	160 VAC
Voltage - Supply [Max]	690 VAC
Voltage - Supply [Min]	160 VAC

Part	Delay Time [Max]	Delay Time [Min]	Function	Trip Range [Max]	Trip Range [Min]	Features	Mounting Type	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]
Siemens 3UG46152CR20	20 s	0.1 Sec	Overvoltage Phase Loss Phase Sequence Undervoltage	690 VAC	160 VAC	Automatic Reset	DIN Rail	Spring Terminal	160 VAC	690 VAC	-25 °C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY DIGITAL MOONITORING FOR 3P
