333-018-523-108

Active

EDAC Inc.

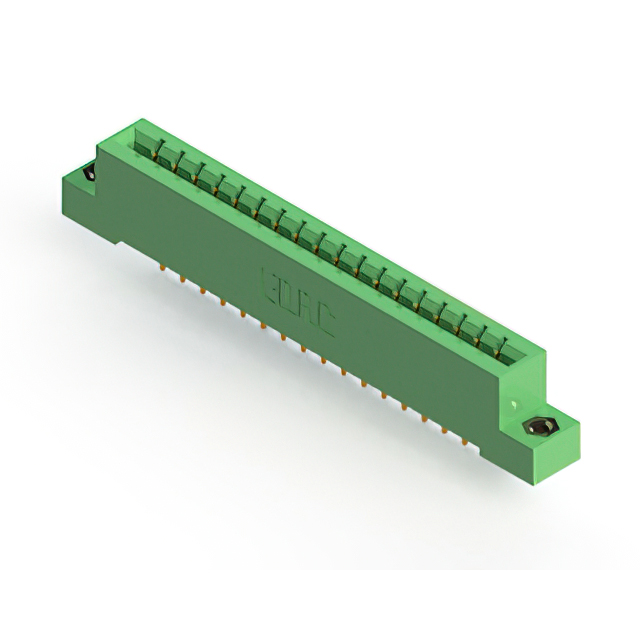

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 18 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN +1

333-018-523-108

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 18 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	333-018-523-108

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	18
Number of Positions/Bay/Row [custom]	18
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

333-018 Series

...

Part	Color	Pitch [x]	Pitch [x]	Number of Positions	Read Out	Number of Positions/Bay/Row [custom]	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Rows	Contact Type	Contact Finish	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Gender	Mounting Type	Flange Feature	Card Type	Termination Rows	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 333-018-541-807	Green	0.156 in	3.96 mm	18	Dual	9	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Cantilever	Gold	Copper Alloy	10 Áin	0.25 Ám	Female	Through Hole	M3 Threaded Insert Top Mount Opening	Non Specified - Dual Edge	2	Polyester Thermoplastic	-40 °C	105 ░C
EDAC Inc. 333-018-541-108	Green	0.156 in	3.96 mm	18	Single	18	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Cantilever	Gold	Copper Alloy	10 Áin	0.25 Ám	Female	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	1	Polyester Thermoplastic	-40 °C	105 ░C
EDAC Inc. 333-018-523-212	Green	0.156 in	3.96 mm	18	Dual	9	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Cantilever	Gold	Copper Alloy	10 Áin	0.25 Ám	Female	Through Hole	Flush Mount Side Opening Unthreaded	Non Specified - Dual Edge	2	Polyester Thermoplastic	-40 °C	105 ░C	3.25 mm	0.128 "
EDAC Inc. 333-018-541-212	Green	0.156 in	3.96 mm	18	Dual	9	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Cantilever	Gold	Copper Alloy	10 Áin	0.25 Ám	Female	Through Hole	Flush Mount Side Opening Unthreaded	Non Specified - Dual Edge	2	Polyester Thermoplastic	-40 °C	105 ░C	3.25 mm	0.128 "
EDAC Inc. 333-018-521-202	Green	0.156 in	3.96 mm	18	Dual	9	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Cantilever	Gold	Copper Alloy	10 Áin	0.25 Ám	Female	Through Hole	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	2	Polyester Thermoplastic	-40 °C	105 ░C	3.25 mm	0.128 "
EDAC Inc. 333-018-542-808	Green	0.156 in	3.96 mm	18	Dual	9	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Cantilever	Gold	Copper Alloy	10 Áin	0.25 Ám	Female	Through Hole	4-40 Threaded Insert Top Mount Opening	Non Specified - Dual Edge	2	Polyester Thermoplastic	-40 °C	105 ░C
EDAC Inc. 333-018-521-107	Green	0.156 in	3.96 mm	18	Single	18	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Cantilever	Gold	Copper Alloy	10 Áin	0.25 Ám	Female	Through Hole	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Single Edge	1	Polyester Thermoplastic	-40 °C	105 ░C
EDAC Inc. 333-018-523-108	Green	0.156 in	3.96 mm	18	Single	18	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Cantilever	Gold	Copper Alloy	10 Áin	0.25 Ám	Female	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	1	Polyester Thermoplastic	-40 °C	105 ░C
EDAC Inc. 333-018-500-607	Green	0.156 in	3.96 mm	18	Single	18	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Cantilever	Gold	Copper Alloy	10 Áin	0.25 Ám	Female	Through Hole	M3 Threaded Insert Top Mount Opening	Non Specified - Single Edge	1	Diallyl Phthalate (DAP)	-40 °C	105 ░C
EDAC Inc. 333-018-500-812	Green	0.156 in	3.96 mm	18	Dual	9	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Cantilever	Gold	Copper Alloy	10 Áin	0.25 Ám	Female	Through Hole	Side Mount Opening Unthreaded	Non Specified - Dual Edge	2	Diallyl Phthalate (DAP)	-40 °C	105 ░C			3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 9.25
Newark	Each	25	$ 9.72
		50	$ 9.50
		100	$ 9.04
		250	$ 8.82
		500	$ 8.50

Description

General part information

333-018 Series

18 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
