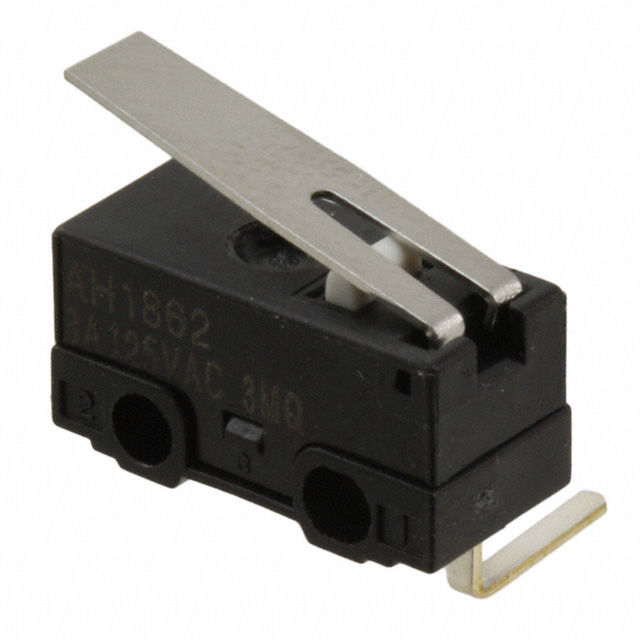

AH1862-A - AH1862-A

AH1862-A

Obsolete
Panasonic Electric Works

SWITCH SNAP ACTION SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAH1 Series DatasheetDatasheet+1
AH1862-A - AH1862-A

AH1862-A

Obsolete
Panasonic Electric Works

SWITCH SNAP ACTION SPDT 3A 125V

Deep-Dive with AI

DocumentsAH1 Series DatasheetDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationAH1862-A
Actuator TypeLever, Straight
CircuitSPDT
Current Rating (Amps)2 A, 3 A
Differential Travel0.5 mm
Differential Travel0.02 in
Electrical Life30000 Cycles
FeaturesActuator Mounted Left Side
Mechanical Life500000 Cycles
Mounting TypeThrough Hole, Right Angle
Operating Force50 gf
Operating Position6.8 mm
Operating Position0.268 "
Operating Temperature [Max]85 °C
Operating Temperature [Min]-25 °C
Overtravel0.022 in
Overtravel0.55 mm
Pretravel2.1 mm
Pretravel0.083 in
Release Force5.099 gf
Switch FunctionOn-Mom
Termination StylePC Pin
Voltage Rating - AC125 V
Voltage Rating - DC30 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

AH186 Series

Switch SPDT Through Hole, Right Angle
