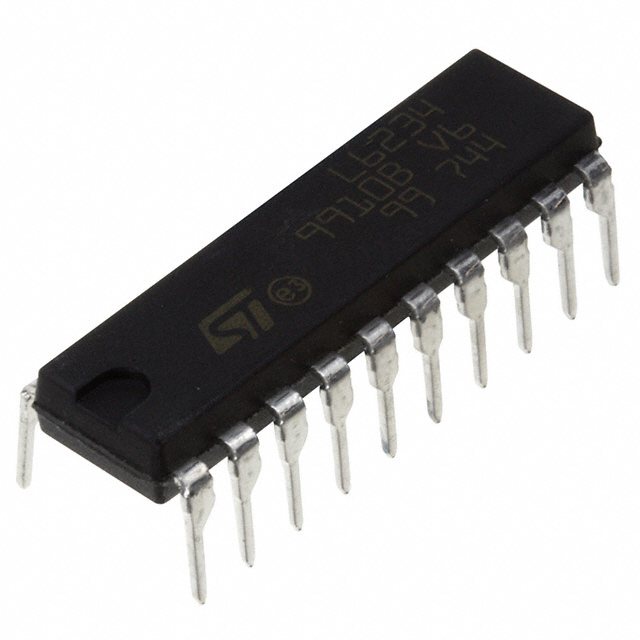

L6234

Unknown

STMicroelectronics

IC MOTOR DRIVER 7V-52V 20-PWRDIP

Search across all available documentation for this part.

Unknown

STMicroelectronics

IC MOTOR DRIVER 7V-52V 20-PWRDIP

Technical Specifications

Parameters and characteristics for this part

Specification	L6234

Applications	General Purpose
Current - Output	2.8 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type - AC, DC	Brushless DC (BLDC)
Mounting Type	Through Hole
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Configuration	Half Bridge (3)
Package / Case	20-DIP
Package / Case	7.62 mm
Package / Case	0.3 in
Supplier Device Package	20-PowerDIP
Technology	BiCDMOS
Voltage - Load [Max]	52 V
Voltage - Load [Min]	7 V
Voltage - Supply [Max]	52 V
Voltage - Supply [Min]	7 V

Part	Function	Interface	Supplier Device Package	Applications	Current - Output	Technology	Mounting Type	Motor Type - AC, DC	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Package / Case [x]	Voltage - Load [Min]	Voltage - Load [Max]	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case
STMicroelectronics L6234PD013TR	Driver - Fully Integrated Control and Power Stage	Parallel	PowerSO-20	General Purpose	4 A	BiCDMOS	Surface Mount	Brushless DC (BLDC)	52 V	7 V	20-SOIC (0.433" 11.00mm Width) Exposed Pad	11 mm	7 V	52 V	Half Bridge (3)	-40 °C	125 ¯C
STMicroelectronics L6234	Driver - Fully Integrated Control and Power Stage	Parallel	20-PowerDIP	General Purpose	2.8 A	BiCDMOS	Through Hole	Brushless DC (BLDC)	52 V	7 V	20-DIP		7 V	52 V	Half Bridge (3)	-40 °C	125 ¯C	7.62 mm	0.3 in
