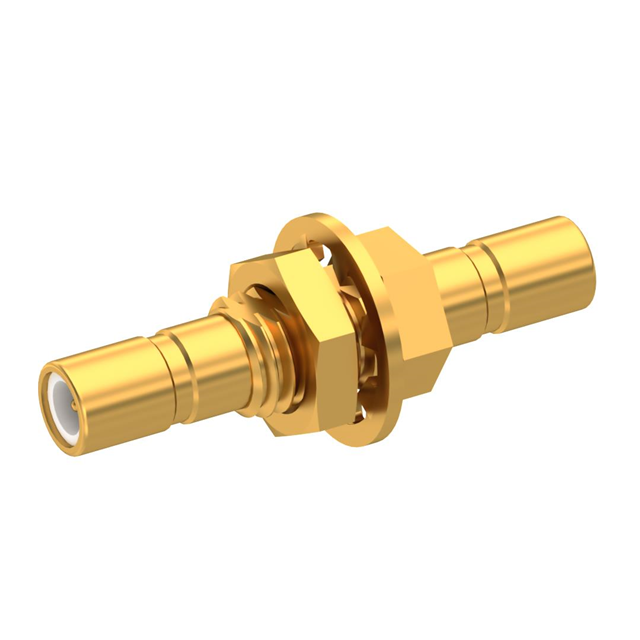

Specification	7222-1501-000

Adapter Series	SSMB to SSMB
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male
Conversion Type	Same Series
Convert From (Adapter End)	SSMB Jack, Male Pin
Convert To (Adapter End) Gender	Male Pin
Convert To (Adapter End) Type	SSMB Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max	12.4 GHz
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Feature	Bulkhead
Mounting Type	Panel Mount
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Style	Straight

7222-1501 Series

Part	Body Finish	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Mating Cycles	Center Contact Material	Body Material	Adapter Type	Impedance	Mounting Type	Mounting Feature	Center Gender	Style	Convert From (Adapter End)	Fastening Type	Frequency - Max	Center Contact Plating	Conversion Type	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Adapter Series
Radiall USA, Inc. 7222-1501-600	Gold	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	500 cycles	Phosphor Bronze	Brass	Jack to Jack	50 Ohm	Panel Mount	Bulkhead	Male	Straight	Male Pin SSMB Jack	Snap-On	12.4 GHz	Gold	Same Series	SSMB Jack	Male Pin	SSMB to SSMB
Radiall USA, Inc. 7222-1501-000	Gold	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	500 cycles	Beryllium Copper	Brass	Jack to Jack	50 Ohm	Panel Mount	Bulkhead	Male	Straight	Male Pin SSMB Jack	Snap-On	12.4 GHz	Gold	Same Series	SSMB Jack	Male Pin	SSMB to SSMB
