10056844-130LF

Active

Amphenol ICC (FCI)

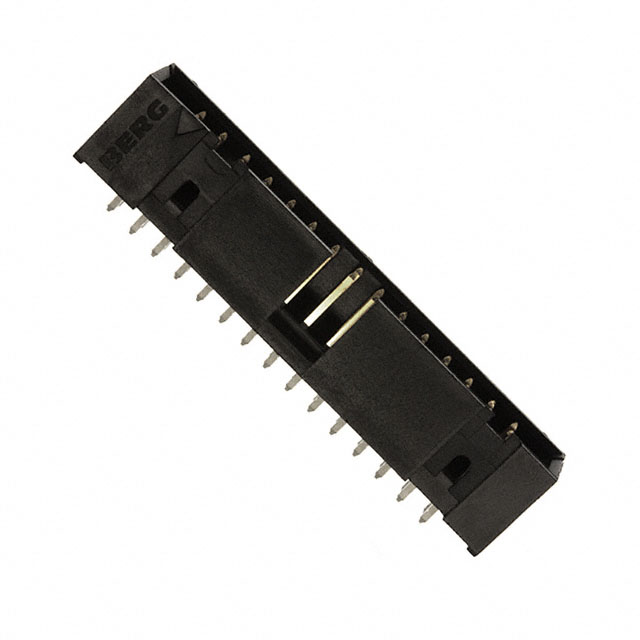

CONN HEADER VERT 30POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

Documentsbus-12-082 Other Related Document quickie productpresentation Other Related Document +1

10056844-130LF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 30POS 2.54MM

Deep-Dive with AI

Documentsbus-12-082 Other Related Document quickie productpresentation Other Related Document +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10056844-130LF

Connector Type	Header
Contact Finish - Mating	Gold, GXT™
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Length - Post	0.079 "
Contact Length - Post	2 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.366 in
Insulation Height	9.3 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

10056844 Series

Part	Fastening Type	Contact Type	Material Flammability Rating	Insulation Material	Contact Length - Post	Contact Length - Post	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Termination	Contact Shape	Insulation Height	Insulation Height	Contact Finish - Mating	Number of Rows	Shrouding	Contact Finish - Post	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Insulation Color	Contact Length - Mating	Contact Length - Mating	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Material	Features
Amphenol ICC (FCI) 10056844-110LF	Push-Pull	Male Pin	UL94 V-0	Thermoplastic	0.079 "	2 mm	10	30 Áin	0.76 Ám	2 çm	78.7 çin	Header	Solder	Square	0.366 in	9.3 mm	Gold GXT™	2	Shrouded - 4 Wall	Tin	Board to Cable/Wire	2.54 mm	0.1 in	All	Black	6 mm	0.236 in	Through Hole	0.1 in	2.54 mm	Copper Alloy	Keying Slot
Amphenol ICC (FCI) 10056844-106ALF	Push-Pull	Male Pin	UL94 V-0	Thermoplastic	0.079 "	2 mm	6	30 Áin	0.76 Ám	2 çm	78.7 çin	Header	Solder	Square	0.366 in	9.3 mm	Gold GXT™	2	Shrouded - 4 Wall	Tin	Board to Board Cable	2.54 mm	0.1 in	All	Black	6 mm	0.236 in	Through Hole	0.1 in	2.54 mm	Copper Alloy	Keying Slot Pick and Place
Amphenol ICC (FCI) 10056844-108LF	Push-Pull	Male Pin	UL94 V-0	Thermoplastic	0.079 "	2 mm	8	30 Áin	0.76 Ám	2 çm	78.7 çin	Header	Solder	Square	0.366 in	9.3 mm	Gold GXT™	2	Shrouded - 4 Wall	Tin	Board to Board Cable	2.54 mm	0.1 in	All	Black	6 mm	0.236 in	Through Hole	0.1 in	2.54 mm	Copper Alloy	Keying Slot
Amphenol ICC (FCI) 10056844-130LF	Push-Pull	Male Pin	UL94 V-0	Thermoplastic	0.079 "	2 mm	30	30 Áin	0.76 Ám	2 çm	78.7 çin	Header	Solder	Square	0.366 in	9.3 mm	Gold GXT™	2	Shrouded - 4 Wall	Tin	Board to Cable/Wire	2.54 mm	0.1 in	All	Black	6 mm	0.236 in	Through Hole	0.1 in	2.54 mm	Copper Alloy	Keying Slot
Amphenol ICC (FCI) 10056844-106LF	Push-Pull	Male Pin	UL94 V-0	Thermoplastic	0.079 "	2 mm	6	30 Áin	0.76 Ám	2 çm	78.7 çin	Header	Solder	Square	0.366 in	9.3 mm	Gold GXT™	2	Shrouded - 4 Wall	Tin	Board to Board Cable	2.54 mm	0.1 in	All	Black	6 mm	0.236 in	Through Hole	0.1 in	2.54 mm	Copper Alloy	Keying Slot
Amphenol ICC (FCI) 10056844-140LF	Push-Pull	Male Pin	UL94 V-0	Thermoplastic	0.079 "	2 mm	40	30 Áin	0.76 Ám	2 çm	78.7 çin	Header	Solder	Square	0.366 in	9.3 mm	Gold GXT™	2	Shrouded - 4 Wall	Tin	Board to Cable/Wire	2.54 mm	0.1 in	All	Black	6 mm	0.236 in	Through Hole	0.1 in	2.54 mm	Copper Alloy	Keying Slot
Amphenol ICC (FCI) 10056844-120LF	Push-Pull	Male Pin	UL94 V-0	Thermoplastic	0.079 "	2 mm	20	30 Áin	0.76 Ám	2 çm	78.7 çin	Header	Solder	Square	0.366 in	9.3 mm	Gold GXT™	2	Shrouded - 4 Wall	Tin	Board to Cable/Wire	2.54 mm	0.1 in	All	Black	6 mm	0.236 in	Through Hole	0.1 in	2.54 mm	Copper Alloy	Keying Slot
Amphenol ICC (FCI) 10056844-108ALF	Push-Pull	Male Pin	UL94 V-0	Thermoplastic	0.079 "	2 mm	8	30 Áin	0.76 Ám	2 çm	78.7 çin	Header	Solder	Square	0.366 in	9.3 mm	Gold GXT™	2	Shrouded - 4 Wall	Tin	Board to Board Cable	2.54 mm	0.1 in	All	Black	6 mm	0.236 in	Through Hole	0.1 in	2.54 mm	Copper Alloy	Keying Slot Pick and Place
Amphenol ICC (FCI) 10056844-114LF	Push-Pull	Male Pin	UL94 V-0	Thermoplastic	0.079 "	2 mm	14	30 Áin	0.76 Ám	2 çm	78.7 çin	Header	Solder	Square	0.366 in	9.3 mm	Gold GXT™	2	Shrouded - 4 Wall	Tin	Board to Cable/Wire	2.54 mm	0.1 in	All	Black	6 mm	0.236 in	Through Hole	0.1 in	2.54 mm	Copper Alloy	Keying Slot
