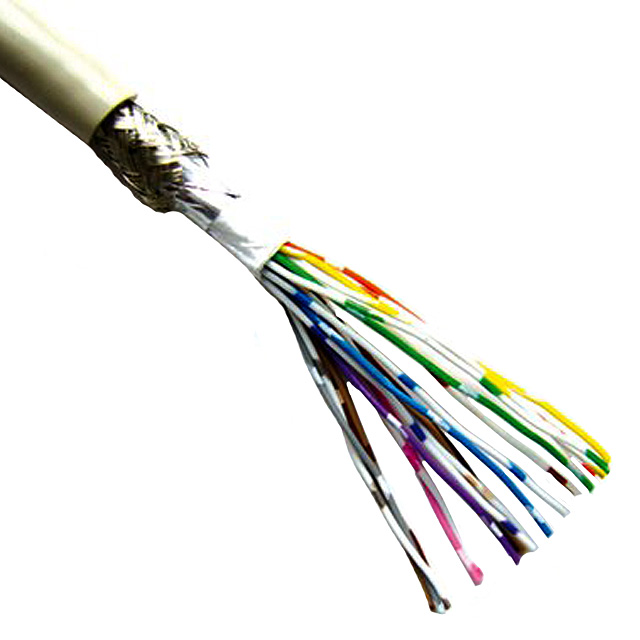

3644B/20 100

Active

3M (TC)

MULTI-PAIR 20CON 28AWG BEIGE 50'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet cable Mating Guide

3644B/20 100

Active

3M (TC)

MULTI-PAIR 20CON 28AWG BEIGE 50'

Deep-Dive with AI

DocumentsDatasheet cable Mating Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3644B/20 100

Cable Type	Multi-Pair
Conductor Insulation	Polyolefin (PO)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.24 in
Jacket (Insulation) Diameter [diameter]	6.1 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.026 in
Jacket (Insulation) Thickness	0.66 mm
Jacket Color	Beige
Length	15.24 m
Length [x]	30.5 m
Length [x]	100 ft, 50 ft
Number of Conductors	20
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Communication, Computer, Control
Voltage	150 V
Wire Gauge	28 AWG

3644B Series

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Length	Length	Voltage	Length [x]	Conductor Insulation	Wire Gauge	Shield Type	Jacket Color	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Conductor Material	Number of Conductors	Length [x]	Features	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter
3M (TC) 3644B/26 300	0.25 "	6.35 mm	Communication Computer Control	1 ft 5 ' 10 ft	1.52 m 3.05 m 15.24 m 300 mm	150 V	50 ft 100 ft	Polyolefin (PO)	28 AWG	Braid Foil	Beige	Poly-Vinyl Chloride (PVC)	0.026 in	0.66 mm	Aluminum Copper Tinned	Multi-Pair	36 AWG	7	90 % 100 %	Copper Tinned	26	30.5 m
3M (TC) 3644B/20 100SF	0.24 in	6.1 mm	Communication Computer Control			150 V	25 ft	Polyolefin (PO)	28 AWG	Braid Foil	Beige	Poly-Vinyl Chloride (PVC)	0.026 in	0.66 mm	Aluminum Copper Tinned	Multi-Pair	36 AWG	7	90 % 100 %	Copper Tinned	20	7.62 m	Splice Free
3M (TC) 3644B/68 300	0.37 in	9.4 mm	Communication Computer Control	300 ft	91.4 m	150 V		Polyolefin (PO)	28 AWG	Braid Foil	Beige	Poly-Vinyl Chloride (PVC)	0.026 in	0.66 mm	Aluminum Copper Tinned	Multi-Pair	36 AWG	7	90 % 100 %	Copper Tinned	68
3M (TC) 3644B/16	0.23 in	5.84 mm	Communication Computer Control			150 V		Polyolefin (PO)	28 AWG	Braid Foil	Beige	Poly-Vinyl Chloride (PVC)	0.026 in	0.66 mm	Aluminum Copper Tinned	Multi-Pair	36 AWG	7	90 % 100 %	Copper Tinned	16
3M (TC) 3644B/50 100SF	0.32 in	8.13 mm	Communication Computer Control			150 V	100 ft	Polyolefin (PO)	28 AWG	Braid Foil	Beige	Poly-Vinyl Chloride (PVC)	0.026 in	0.66 mm	Aluminum Copper Tinned	Multi-Pair	36 AWG	7	90 % 100 %	Copper Tinned	50	30.5 m	Splice Free
3M (TC) 3644B/100 100SF			Communication Computer Control		15.24 m	150 V	25 ft 50 ft	Polyolefin (PO)	28 AWG	Braid Foil	Beige	Poly-Vinyl Chloride (PVC)	0.026 in	0.66 mm	Aluminum Copper Tinned	Multi-Pair	36 AWG	7	90 % 100 %	Copper Tinned	100	7.62 m	Splice Free	0.44 in	11.18 mm
3M (TC) 3644B/24 100SF	0.25 "	6.35 mm	Communication Computer Control			150 V	25 ft 100 ft	Polyolefin (PO)	28 AWG	Braid Foil	Beige	Poly-Vinyl Chloride (PVC)	0.026 in	0.66 mm	Aluminum Copper Tinned	Multi-Pair	36 AWG	7	90 % 100 %	Copper Tinned	24	7.62 m 30.5 m	Splice Free
3M (TC) 3644B/14 100SF	0.22 in	5.59 mm	Communication Computer Control		15.24 m	150 V	50 ft 100 ft	Polyolefin (PO)	28 AWG	Braid Foil	Beige	Poly-Vinyl Chloride (PVC)	0.026 in	0.66 mm	Aluminum Copper Tinned	Multi-Pair	36 AWG	7	90 % 100 %	Copper Tinned	14	30.5 m	Splice Free
3M (TC) 3644B/20 100	0.24 in	6.1 mm	Communication Computer Control		15.24 m	150 V	50 ft 100 ft	Polyolefin (PO)	28 AWG	Braid Foil	Beige	Poly-Vinyl Chloride (PVC)	0.026 in	0.66 mm	Aluminum Copper Tinned	Multi-Pair	36 AWG	7	90 % 100 %	Copper Tinned	20	30.5 m
3M (TC) 3644B/20 300	0.24 in	6.1 mm	Communication Computer Control	1 ft 300 ft	91.4 m 300 mm	150 V	100 ft	Polyolefin (PO)	28 AWG	Braid Foil	Beige	Poly-Vinyl Chloride (PVC)	0.026 in	0.66 mm	Aluminum Copper Tinned	Multi-Pair	36 AWG	7	90 % 100 %	Copper Tinned	20	30.5 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	15	$ 152.70
		30	$ 142.17
	Spool	1	$ 333.28
		2	$ 316.97
		3	$ 307.74
		5	$ 296.44
		7	$ 289.18
		10	$ 281.64
		25	$ 263.00

Description

General part information

3644B Series

20 (10 Pair Twisted) Conductor Multi-Pair Cable Beige 28 AWG Foil, Braid 50.00' (15.24m)
