TFSDT-05-28-H-18.00-TF-NDS

Active

Samtec Inc.

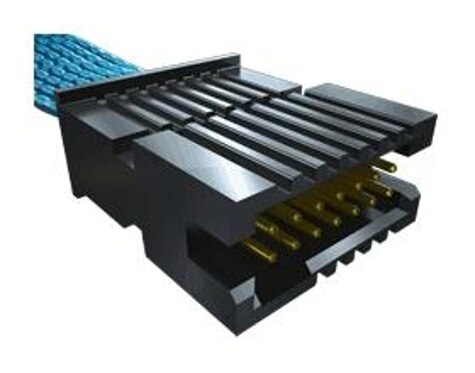

RECTANGULAR CABLE ASSEMBLIES .050" TIGER EYE DOUBLE ROW DISCRETE WIRE TEFLON CABLE ASSEMBLY, TERMINAL

Search across all available documentation for this part.

Active

Samtec Inc.

RECTANGULAR CABLE ASSEMBLIES .050" TIGER EYE DOUBLE ROW DISCRETE WIRE TEFLON CABLE ASSEMBLY, TERMINAL

Technical Specifications

Parameters and characteristics for this part

Rectangular Cable Assemblies .050" Tiger Eye Double Row Discrete Wire Teflon Cable Assembly, Terminal

Part	Length	Length	Length	Pitch - Connector	Pitch - Connector	Cable Termination	Number of Rows	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Finish	Shielding	Connector Type	Length [x]	Length [x]
Samtec Inc. TFSDT-10-28-G-08.00-DL-NUX	0.667 ft	8 in	203.2 mm	0.05 in	1.27 mm	Crimp	2	20	10 Áin	0.25 Ám	Friction Lock	Gold	Unshielded	Plug to Plug
Samtec Inc. TFSDT-05-28-G-32.00-T-NUX				0.05 in	1.27 mm	Crimp	2	10	10 Áin	0.25 Ám		Gold	Unshielded	Socket to Plug	812.8 mm	2.67 ft
Samtec Inc. TFSDT-05-28-H-18.00-TF-NDS				0.05 in	1.27 mm	Crimp	2	10	30 Áin	0.76 Ám	Friction Lock	Gold	Unshielded	Socket to Plug	457.2 mm	1.5 ft
Samtec Inc. TFSDT-20-28-H-24.00-S				0.05 in	1.27 mm	Crimp	2	40	30 Áin	0.76 Ám		Gold	Unshielded	Plug to Individual Wire Leads	609.6 mm	2 '
Samtec Inc. TFSDT-05-28-G-15.00-S			381 mm	0.05 in	1.27 mm	Crimp	2	10	10 Áin	0.25 Ám		Gold	Unshielded	Plug to Individual Wire Leads		15 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rectangular Cable Assemblies .050" Tiger Eye Double Row Discrete Wire Teflon Cable Assembly, Terminal
