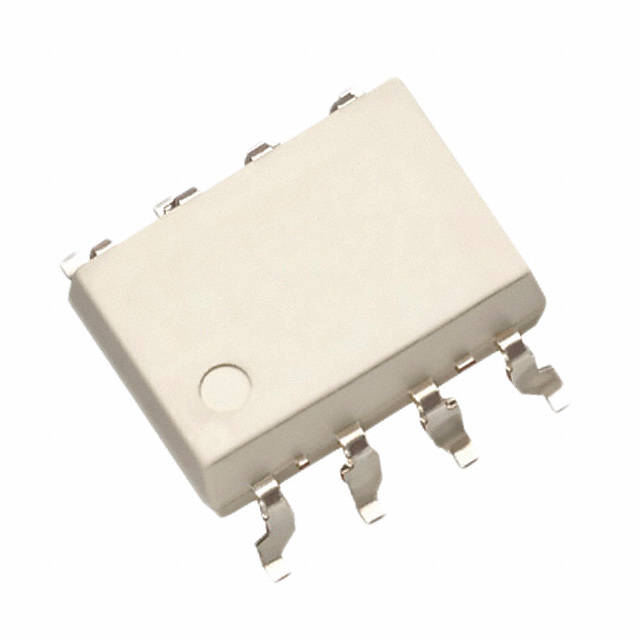

PS9531L3-E3-A

Active

CEL

OPTOISO 5KV 1CH GATE DVR 8SMD

Search across all available documentation for this part.

Active

CEL

OPTOISO 5KV 1CH GATE DVR 8SMD

Technical Specifications

Parameters and characteristics for this part

Specification	PS9531L3-E3-A

Approval Agency	SEMKO, UL, CSA
Common Mode Transient Immunity (Min) [Min]	50 kV/çs
Current - DC Forward (If) (Max) [Max]	25 mA
Current - Output High, Low [custom]	2 A
Current - Output High, Low [custom]	2 A
Current - Peak Output	2.5 A
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Propagation Delay tpLH / tpHL (Max) [custom]	175 ns
Propagation Delay tpLH / tpHL (Max) [custom]	175 ns
Pulse Width Distortion (Max) [Max]	75 ns
Rise / Fall Time (Typ) [custom]	40 ns
Rise / Fall Time (Typ) [custom]	40 ns
Supplier Device Package	8-SMD
Technology	Optical Coupling
Voltage - Forward (Vf) (Typ)	1.56 V
Voltage - Output Supply [Max]	30 V
Voltage - Output Supply [Min]	15 V

Part	Common Mode Transient Immunity (Min) [Min]	Current - Peak Output	Pulse Width Distortion (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Technology	Supplier Device Package	Mounting Type	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Voltage - Forward (Vf) (Typ)	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Number of Channels	Approval Agency	Current - DC Forward (If) (Max) [Max]	Package / Case	Package / Case	Package / Case
CEL PS9531L3-V-E3-A	50 kV/çs	2.5 A	75 ns	125 °C	-40 °C	175 ns	175 ns	Optical Coupling	8-SMD	Surface Mount	15 V	30 V	40 ns	40 ns	1.56 V	2 A	2 A	1	CSA SEMKO UL VDE	25 mA
CEL PS9531L3-E3-A	50 kV/çs	2.5 A	75 ns	125 °C	-40 °C	175 ns	175 ns	Optical Coupling	8-SMD	Surface Mount	15 V	30 V	40 ns	40 ns	1.56 V	2 A	2 A	1	CSA SEMKO UL	25 mA
CEL PS9531-AX	50 kV/çs	2.5 A	75 ns	125 °C	-40 °C	175 ns	175 ns	Optical Coupling	8-DIP	Through Hole	15 V	30 V	40 ns	40 ns	1.56 V	2 A	2 A	1	CSA SEMKO UL	25 mA	0.3 in	8-DIP	7.62 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.5A Gate Driver Optical Coupling 5000Vrms 1 Channel 8-SMD
