M80-4760605

Active

Harwin Inc.

HEADER CONNECTOR,CABLE MOUNT,PLUG,6 CONTACTS,SKT,0.079 PITCH,CRIMP TERMINAL,LOCKING ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

HEADER CONNECTOR,CABLE MOUNT,PLUG,6 CONTACTS,SKT,0.079 PITCH,CRIMP TERMINAL,LOCKING ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Contact Finish	Connector Type	Color	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Cable Termination	Contact Type	Mounting Type	Number of Positions	Number of Rows	Wire Type	Row Spacing	Row Spacing
Harwin Inc. M80-4760605	0.079 in	2 mm	Gold	Receptacle	Black	0.3 Ám	11.8 Áin	24 AWG	28 AWG	Crimp	Female Socket	Free Hanging (In-Line)	6	2	Discrete	2 mm	0.079 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

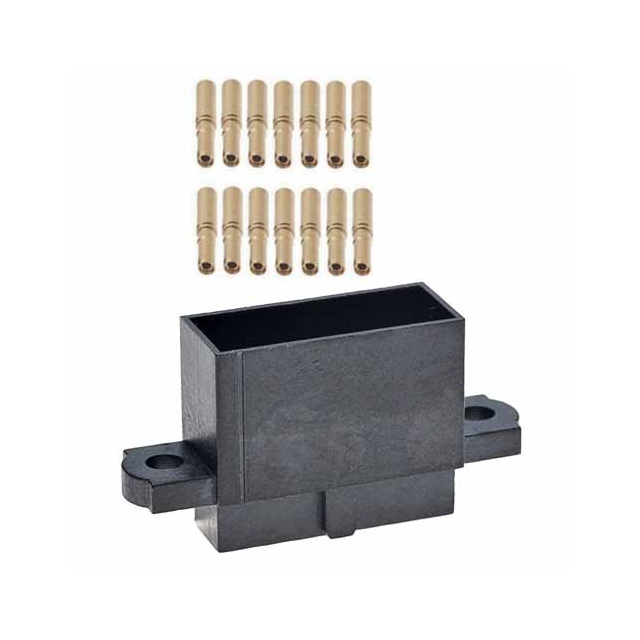

6 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG

Technical documentation and resources
