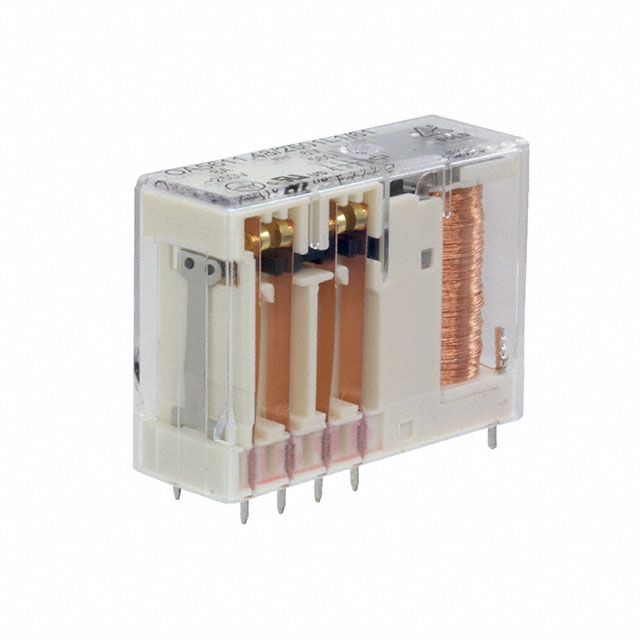

56.OA11.0631N
ActiveAltech Corporation
OA5611 6V 3NO/1NC AGNI10+2UMAU I
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
56.OA11.0631N
ActiveAltech Corporation
OA5611 6V 3NO/1NC AGNI10+2UMAU I
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 56.OA11.0631N | 56.OA11 Series |
|---|---|---|
| - | - | |
| Coil Current | 107 mA | 5.5 - 107 mA |
| Coil Power | 643 mW | 600 - 643 mW |
| Coil Resistance | 56 Ohms | 20.15 - 960 Ohms |
| Coil Voltage | - | 24 - 110 VDC |
| Contact Form | 4PST-3NO/1NC (3 Form A, 1 Form B) | 4PST-3NO/1NC (3 Form A, 1 Form B), 4PST-2NO/2NC (2 Form A, 2 Form B) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) | Silver Nickel (AgNi), Gold (Au), Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 8 A | 8 A |
| Mounting Type | Through Hole | Through Hole |
| Must Operate Voltage | 4.2 VDC | 4.2 - 77 VDC |
| Operate Time | 20 ms | 20 ms |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Release Time | 6 ms | 6 ms |
| Switching Voltage [Max] | 250 VDC, 400 VAC | 250 - 400 VDC |
| Termination Style | PC Pin | PC Pin |
56.OA11 Series
OA561124V 2NO/2NC AGNI10+5UMAU I
| Part | Contact Form | Switching Voltage [Max] | Contact Material | Coil Resistance | Must Operate Voltage | Termination Style | Coil Power | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Release Time | Contact Rating (Current) | Coil Voltage | Mounting Type | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Altech Corporation 56.OA11.2422S | |||||||||||||||
Altech Corporation 56.OA11.0622N | |||||||||||||||
Altech Corporation 56.OA11.1131S | |||||||||||||||
Altech Corporation 56.OA11.2422C | |||||||||||||||
Altech Corporation 56.OA11.2431N | 4PST-3NO/1NC (3 Form A, 1 Form B) | 250 VDC, 400 VAC | Gold (Au), Silver Nickel (AgNi) | 960 Ohms | 16.8 VDC | PC Pin | 600 mW | 20 ms | 85 °C | -40 °C | 6 ms | 8 A | 24 VDC | Through Hole | |
Altech Corporation 56.OA11.1231C | |||||||||||||||
Altech Corporation 56.OA11.1122N | 4PST-2NO/2NC (2 Form A, 2 Form B) | 250 VDC, 400 VAC | Gold (Au), Silver Nickel (AgNi) | 20.15 kOhms | 77 VDC | PC Pin | 20 ms | 85 °C | -40 °C | 6 ms | 8 A | 110 VDC | Through Hole | 5.5 mA | |
Altech Corporation 56.OA11.1122S | |||||||||||||||
Altech Corporation 56.OA11.1222S | |||||||||||||||
Altech Corporation 56.OA11.1131N | 4PST-3NO/1NC (3 Form A, 1 Form B) | 250 VDC, 400 VAC | Gold (Au), Silver Nickel (AgNi) | 20.15 kOhms | 77 VDC | PC Pin | 600 mW | 20 ms | 85 °C | -40 °C | 6 ms | 8 A | 110 VDC | Through Hole | 5.5 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 30 | $ 53.09 | |
Description
General part information
56.OA11 Series
OA5611 6V 3NO/1NC AGNI10+2UMAU I
