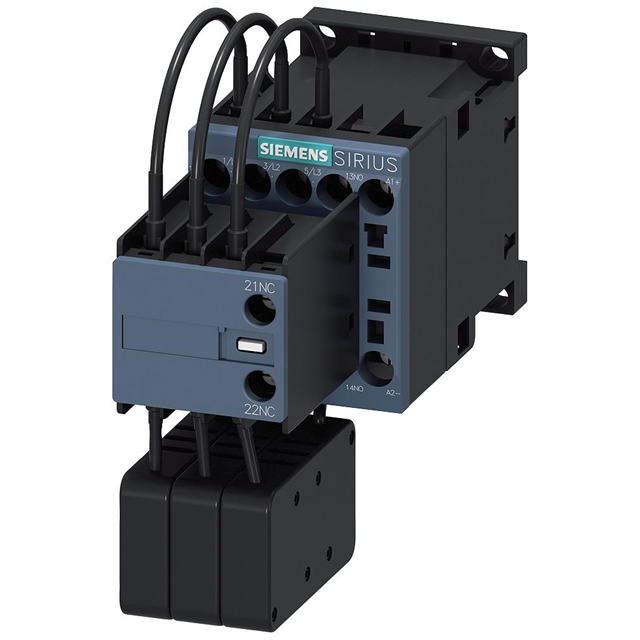

Specification	3RT26171BB43

Coil Power	4 W
Coil Voltage	24 VDC
Contact Form	A, PST-NO, Form, 3
Contact Rating (Current)	18 A
Features	Auxiliary Contacts
Mounting Type	Chassis Mount, DIN Rail
Must Operate Voltage	20.4 VDC
Operate Time	100 ms
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-25 °C
Pin Count	3 pins
Release Time	13 ms
Switching Voltage AC (Max)	690 VAC
Termination Style	Screw Terminal

3RT2617 Series

Part	Coil Power	Release Time	Operate Time	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)	Switching Voltage AC (Max)	Mounting Type	Contact Rating (Current)	Coil Voltage	Features	Pin Count	Contact Form	Must Operate Voltage
Siemens 3RT26171BF43	4 W	13 ms	100 ms	Screw Terminal	-25 °C	60 °C	690 VAC	Chassis Mount DIN Rail	18 A	110 V	Auxiliary Contacts	3 pins	3 A Form PST-NO	93.5 VDC
Siemens 3RT26171BB45	4 W	13 ms	100 ms	Screw Terminal	-25 °C	60 °C	690 VAC	Chassis Mount DIN Rail	18 A	24 VDC	Auxiliary Contacts	3 pins	3 A Form PST-NO	20.4 VDC
Siemens 3RT26171AF03	49 VA	13 ms	35 ms	Screw Terminal	-25 °C	60 °C	690 VAC	Chassis Mount DIN Rail	18 A	110 V	Auxiliary Contacts	3 pins	3 A Form PST-NO	93.5 VDC
Siemens 3RT26171AP05	49 VA	13 ms	35 ms	Screw Terminal	-25 °C	60 °C	690 VAC	Chassis Mount DIN Rail	18 A	230 VDC	Auxiliary Contacts	3 pins	3 A Form PST-NO	195.5 VDC
Siemens 3RT26171AB05	49 VA	13 ms	35 ms	Screw Terminal	-25 °C	60 °C	690 VAC	Chassis Mount DIN Rail	18 A	24 VDC	Auxiliary Contacts	3 pins	3 A Form PST-NO	20.4 VDC
Siemens 3RT26171BB43	4 W	13 ms	100 ms	Screw Terminal	-25 °C	60 °C	690 VAC	Chassis Mount DIN Rail	18 A	24 VDC	Auxiliary Contacts	3 pins	3 A Form PST-NO	20.4 VDC
Siemens 3RT26171AK63	49 VA	13 ms	35 ms	Screw Terminal	-25 °C	60 °C	690 VAC	Chassis Mount DIN Rail	18 A	120 V	Auxiliary Contacts	3 pins	3 A Form PST-NO	102 VAC
Siemens 3RT26171AP63	49 VA	13 ms	35 ms	Screw Terminal	-25 °C	60 °C	690 VAC	Chassis Mount DIN Rail	18 A	240 V	Auxiliary Contacts	3 pins	3 A Form PST-NO	204 VAC
Siemens 3RT26171BF45	4 W	13 ms	100 ms	Screw Terminal	-25 °C	60 °C	690 VAC	Chassis Mount DIN Rail	18 A	110 V	Auxiliary Contacts	3 pins	3 A Form PST-NO	93.5 VDC
Siemens 3RT26171AF05	49 VA	13 ms	35 ms	Screw Terminal	-25 °C	60 °C	690 VAC	Chassis Mount DIN Rail	18 A	110 V	Auxiliary Contacts	3 pins	3 A Form PST-NO	93.5 VDC
