CYUSBS234 - CYUSBS234

CYUSBS234

Active
Infineon Technologies

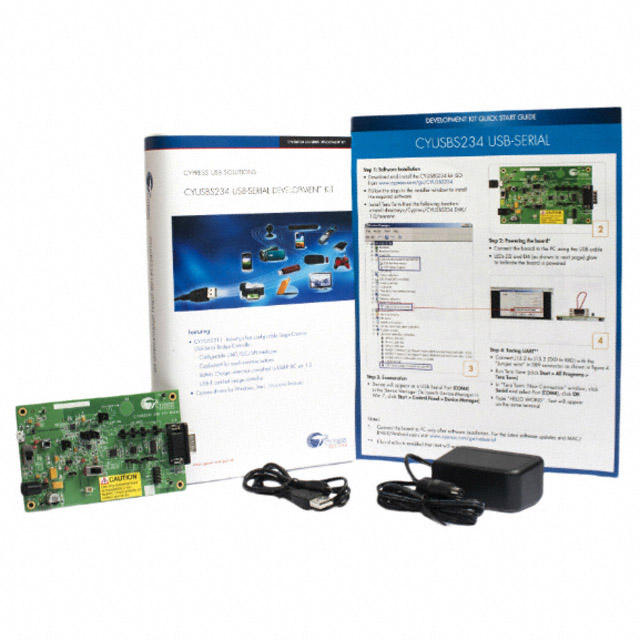

CYUSBS234 DVK HELPS EVALUATE THE FEATURES OF THE SINGLE CHANNEL USB-SERIAL BRIDGE CONTROLLER, CY7C65211. THE DVK PROVIDES A COPPER PAD ON PCB TO TEST CAPSENSE FEATURE, A SET OF EEPROMS TO TEST I2C AND SPI INTERFACES, A RS232 LINE DRIVER TO TEST UART INTERFACE AND A LI-ION BATTERY CHARGING CONTROLLER (BATTERY NOT INCLUDED) TO TEST THE BCD FEATURE. THE EASY-TO-USE SOFTWARE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetCYUSBS234 Quick Start Guide+1
CYUSBS234 - CYUSBS234

CYUSBS234

Active
Infineon Technologies

CYUSBS234 DVK HELPS EVALUATE THE FEATURES OF THE SINGLE CHANNEL USB-SERIAL BRIDGE CONTROLLER, CY7C65211. THE DVK PROVIDES A COPPER PAD ON PCB TO TEST CAPSENSE FEATURE, A SET OF EEPROMS TO TEST I2C AND SPI INTERFACES, A RS232 LINE DRIVER TO TEST UART INTERFACE AND A LI-ION BATTERY CHARGING CONTROLLER (BATTERY NOT INCLUDED) TO TEST THE BCD FEATURE. THE EASY-TO-USE SOFTWARE

Deep-Dive with AI

DocumentsDatasheetCYUSBS234 Quick Start Guide+1

Technical Specifications

Parameters and characteristics for this part

SpecificationCYUSBS234
ContentsCable(s), Board(s), Power Supply
FunctionUSB 2.0 to UART (RS232) Bridge
Supplied ContentsCable(s), Power Supply, Board(s)
TypeInterface
Utilized IC / PartCY7C65211

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 1$ 27.10
DigikeyBox 1$ 27.61
NewarkEach 1$ 28.10

Description

General part information

CYUSBS234 Series

The USB-Serial Bridge Controller series is the latest addition to Infineon’s family of Full-Speed USB Controllers. The CY7C65211 controller provides a single configurable serial channel for UART/I2C/SPI interfaces, with industry’s lowest power consumption in stand-by mode (5 uA). The CY7C65211 controller integrates the industry-leading CapSense™ capacitive-touch sensing technology (for touch sensitive key switches) and Battery Charging Detection logic compliant to USB-IF Battery Charging specification ver. 1.2 (to detect the source of power on the USB port). The controller features up to 12 pins for GPIO and is available in 24-pin QFN package. The controller is USB-IF certified with TID# 40860041. The USB-Serial Bridge Controller series is ideal for applications such as portable medical devices (like blood-glucose meters), point-of-sales terminals, Serial Cables (including USB-to-UART and RS232 cables) and many other applications requiring USB connectivity.
