1010M80

Active

Jacob GmbH

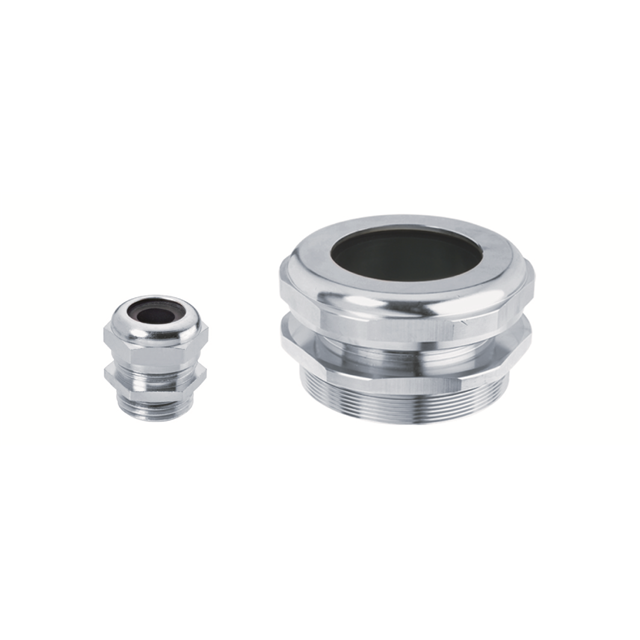

CABLE GLAND 53-60MM M80 BRASS

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 53-60MM M80 BRASS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 150.47

General part information

Cable Gland Brass, Nickel Plated M80x2 Silver

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1010M80	1010M Series

Color	Silver	Silver
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Material	Brass, Nickel Plated	Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Outside Cable Diameter (Max) [Max] [diameter]	60 mm	60 - 75 mm
Outside Cable Diameter (Max) [Max] [diameter]	2.362 "	2.362 - 2.953 "
Outside Cable Diameter (Min)	-	68 mm
Outside Cable Diameter (Min) [Min]	2.087 in	2.087 in
Outside Cable Diameter (Min) [Min]	53 mm	2.677 - 53 mm
Thread Length	0.709 in	0.709 - 0.866 in
Thread Length	18.01 mm	18.01 - 22 mm
Thread Size	M80x2	M80x2, M100x3
Type	Cable Gland	Cable Gland

CABLE GLAND 53-60MM M80 BRASS

Part	Thread Size	Color	Material	Type	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Thread Length	Thread Length	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min]
Jacob GmbH 1010M80	M80x2	Silver	Brass, Nickel Plated	Cable Gland	2.087 in	53 mm	0.709 in	18.01 mm	IP65 - Dust Tight, Water Resistant	100 °C	-30 ░C	60 mm	2.362 "
Jacob GmbH 1010M100	M100x3	Silver	Brass, Nickel Plated	Cable Gland		2.677 in	0.866 in	22 mm	IP65 - Dust Tight, Water Resistant	100 °C	-30 ░C	75 mm	2.953 in	68 mm
