Connectors, Interconnects
1-770835-0
ActiveTE Connectivity Raychem Cable Protection

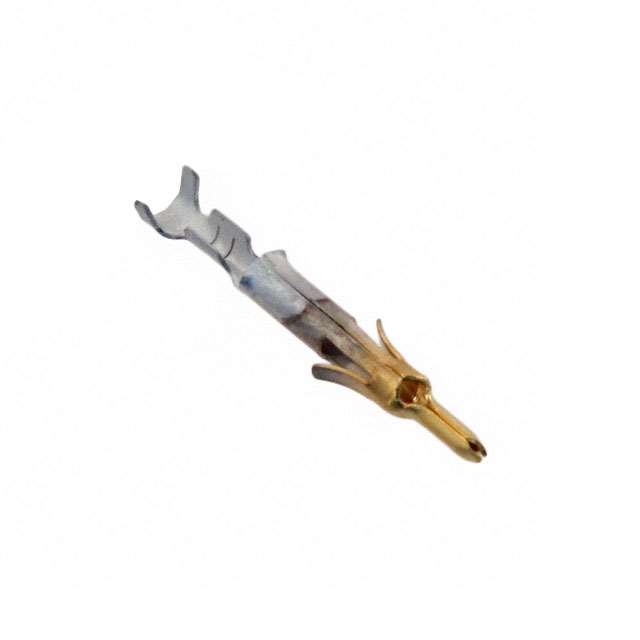

(1-770835-0) MINI UMNL PIN AU LF
Deep-Dive with AI
Search across all available documentation for this part.
Connectors, Interconnects
1-770835-0
ActiveTE Connectivity Raychem Cable Protection
(1-770835-0) MINI UMNL PIN AU LF
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-770835-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Brass |
| Contact Termination | Crimp |
| Pin or Socket | Pin |
| Type | Stamped |
| Wire Gauge [Max] | 30 AWG |
| Wire Gauge [Min] | 26 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.44 | |
| 10 | $ 0.42 | |||
| 25 | $ 0.41 | |||
| 50 | $ 0.40 | |||
| 100 | $ 0.35 | |||
| 250 | $ 0.31 | |||
| 500 | $ 0.30 | |||
| 1000 | $ 0.26 | |||
| 2500 | $ 0.26 | |||
| Tape & Reel (TR) | 10000 | $ 0.22 | ||
Description
General part information
770835 Series
Pin Contact Gold Crimp 26-30 AWG Stamped
Documents
Technical documentation and resources
No documents available
