LCM-S02402DSF

Active

Lumex Opto/Components Inc.

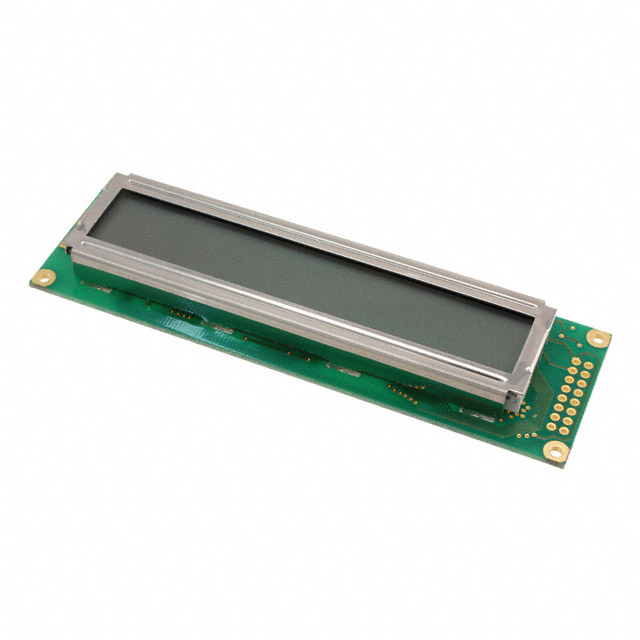

LCD MOD 48DIG 24X2 TRANS YLW/GRN

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD 48DIG 24X2 TRANS YLW/GRN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 118.00mm x 36.00mm x 12.70mm

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	LCM-S02402DSF	LCM-S02402 Series

Background Color	Green	Green
Backlight	-	Without Backlight
Character Format [x]	5 Dots	5 Dots
Character Format [y]	8 Dots	8 Dots
Character Size [y]	3.2 mm	3.2 mm
Character Size [z]	5.55 mm	5.55 mm
Display Format [x]	24	24
Display Format [y]	2	2
Display Mode	Transflective	Transmissive, Transflective, Reflective
Display Type	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic, TN - Twisted Nematic
Dot Size [custom]	0.65 mm	0.65 mm
Dot Size [custom]	0.6 mm	0.6 mm
Interface	Parallel	Parallel
Number of Characters	48	48
Outline L x W x H [x]	118 mm	118 mm
Outline L x W x H [y]	36 mm	36 mm
Outline L x W x H [z]	12.7 mm	8.8 - 12.7 mm
Viewing Area [x]	93.5 mm	93.5 mm
Viewing Area [y]	16 mm	16 mm

LCD MOD 48DIG 24 X 2 TRANSMISSIV

Part	Dot Size [custom]	Dot Size [custom]	Display Type	Display Format [y]	Display Format [x]	Display Mode	Viewing Area [x]	Viewing Area [y]	Character Format [y]	Character Format [x]	Character Size [z]	Character Size [y]	Backlight	Number of Characters	Interface	Outline L x W x H [z]	Outline L x W x H [y]	Outline L x W x H [x]	Background Color
Lumex Opto/Components Inc. LCM-S02402DSM	0.65 mm	0.6 mm	STN - Super-Twisted Nematic	2	24	Transmissive	93.5 mm	16 mm	8 Dots	5 Dots	5.55 mm	3.2 mm	Without Backlight	48	Parallel	8.8 mm	36 mm	118 mm
Lumex Opto/Components Inc. LCM-S02402DSF	0.65 mm	0.6 mm	STN - Super-Twisted Nematic	2	24	Transflective	93.5 mm	16 mm	8 Dots	5 Dots	5.55 mm	3.2 mm		48	Parallel	12.7 mm	36 mm	118 mm	Green
Lumex Opto/Components Inc. LCM-S02402DTR	0.65 mm	0.6 mm	TN - Twisted Nematic	2	24	Reflective	93.5 mm	16 mm	8 Dots	5 Dots	5.55 mm	3.2 mm	Without Backlight	48	Parallel	8.8 mm	36 mm	118 mm
Lumex Opto/Components Inc. LCM-S02402DSR	0.65 mm	0.6 mm	STN - Super-Twisted Nematic	2	24	Reflective	93.5 mm	16 mm	8 Dots	5 Dots	5.55 mm	3.2 mm	Without Backlight	48	Parallel	8.8 mm	36 mm	118 mm	Green
Lumex Opto/Components Inc. LCM-S02402DTF	0.65 mm	0.6 mm	TN - Twisted Nematic	2	24	Transflective	93.5 mm	16 mm	8 Dots	5 Dots	5.55 mm	3.2 mm		48	Parallel	12.7 mm	36 mm	118 mm
