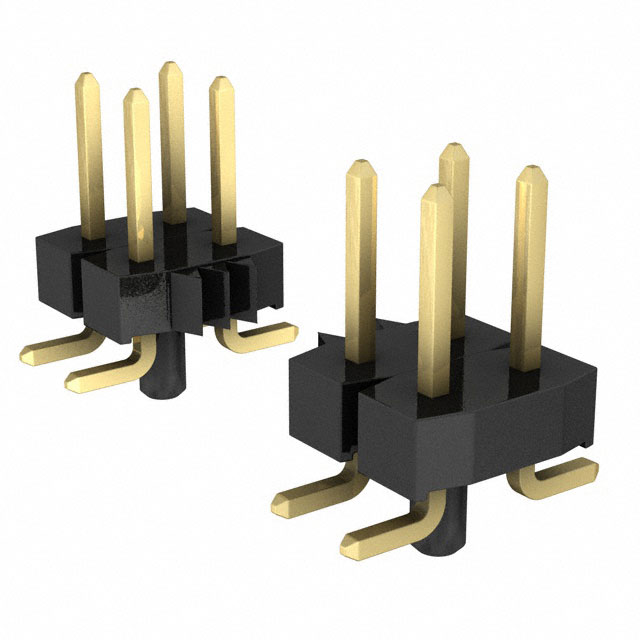

CONN HEADER SMD 10POS 2MM
Deep-Dive with AI
Search across all available documentation for this part.
M22-5320505R
ActiveHarwin Inc.
CONN HEADER SMD 10POS 2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M22-5320505R |
|---|---|
| Connector Type | Cuttable, Header |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.138 in |
| Contact Length - Mating | 3.5 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 1 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 1.5 mm |
| Insulation Height | 0.059 " |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Mated Stacking Heights [z] | 4.6 mm, 6.8 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
M22-532 Series
| Part | Pitch - Mating [x] | Pitch - Mating [x] | Contact Length - Mating | Contact Length - Mating | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Contact Shape | Insulation Material | Contact Type | Fastening Type | Contact Material | Row Spacing - Mating | Row Spacing - Mating | Mounting Type | Insulation Height | Insulation Height | Number of Rows | Number of Positions | Shrouding | Mated Stacking Heights [z] | Material Flammability Rating | Termination | Number of Positions Loaded | Connector Type | Contact Finish - Mating | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | 0.079 in | 2 mm | 0.138 in | 3.5 mm | 1 A | -40 °C | 105 ░C | Black | Square | Nylon 6T Polyamide (PA6T) | Male Pin | Push-Pull | Phosphor Bronze | 0.079 in | 2 mm | Surface Mount | 1.5 mm | 0.059 " | 2 | 6 | Unshrouded | 4.6 mm 6.8 mm | UL94 V-0 | Solder | All | Cuttable Header | Gold | |
Harwin Inc. | 0.079 in | 2 mm | 0.138 in | 3.5 mm | 1 A | -40 °C | 105 ░C | Black | Square | Nylon 6T Polyamide (PA6T) | Male Pin | Push-Pull | Phosphor Bronze | 0.079 in | 2 mm | Surface Mount | 1.5 mm | 0.059 " | 2 | 10 | Unshrouded | 4.6 mm 6.8 mm | UL94 V-0 | Solder | All | Cuttable Header | Tin | |
Harwin Inc. | 0.079 in | 2 mm | 0.138 in | 3.5 mm | 1 A | -40 °C | 105 ░C | Black | Square | Nylon 6T Polyamide (PA6T) | Male Pin | Push-Pull | Phosphor Bronze | 0.079 in | 2 mm | Surface Mount | 1.5 mm | 0.059 " | 2 | 10 | Unshrouded | 4.6 mm 6.8 mm | UL94 V-0 | Solder | All | Cuttable Header | Gold | |
Harwin Inc. | 0.079 in | 2 mm | 0.138 in | 3.5 mm | 1 A | -40 °C | 105 ░C | Black | Square | Nylon 6T Polyamide (PA6T) | Male Pin | Push-Pull | Phosphor Bronze | 0.079 in | 2 mm | Surface Mount | 1.5 mm | 0.059 " | 2 | 12 | Unshrouded | 4.6 mm 6.8 mm | UL94 V-0 | Solder | All | Cuttable Header | Gold | |
Harwin Inc. | 0.079 in | 2 mm | 0.138 in | 3.5 mm | 1 A | -40 °C | 105 ░C | Black | Square | Nylon 6T Polyamide (PA6T) | Male Pin | Push-Pull | Phosphor Bronze | 0.079 in | 2 mm | Surface Mount | 1.5 mm | 0.059 " | 2 | 4 | Unshrouded | 4.6 mm 6.8 mm | UL94 V-0 | Solder | All | Cuttable Header | Tin | |
Harwin Inc. | 0.079 in | 2 mm | 0.138 in | 3.5 mm | 1 A | -40 °C | 105 ░C | Black | Square | Nylon 6T Polyamide (PA6T) | Male Pin | Push-Pull | Phosphor Bronze | 0.079 in | 2 mm | Surface Mount | 1.5 mm | 0.059 " | 2 | 10 | Unshrouded | 4.6 mm 6.8 mm | UL94 V-0 | Solder | All | Cuttable Header | Gold | |
Harwin Inc. | 0.079 in | 2 mm | 0.138 in | 3.5 mm | 1 A | -40 °C | 105 ░C | Black | Square | Nylon 6T Polyamide (PA6T) | Male Pin | Push-Pull | Phosphor Bronze | 0.079 in | 2 mm | Surface Mount | 1.5 mm | 0.059 " | 2 | 44 | Unshrouded | 4.6 mm 6.8 mm | UL94 V-0 | Solder | All | Cuttable Header | Gold | |
Harwin Inc. | 0.079 in | 2 mm | 0.138 in | 3.5 mm | 1 A | -40 °C | 105 ░C | Black | Square | Nylon 6T Polyamide (PA6T) | Male Pin | Push-Pull | Phosphor Bronze | 0.079 in | 2 mm | Surface Mount | 1.5 mm | 0.059 " | 2 | 4 | Unshrouded | 4.6 mm 6.8 mm | UL94 V-0 | Solder | All | Cuttable Header | Gold | |
Harwin Inc. | 0.079 in | 2 mm | 0.138 in | 3.5 mm | 1 A | -40 °C | 105 ░C | Black | Square | Nylon 6T Polyamide (PA6T) | Male Pin | Push-Pull | Phosphor Bronze | 0.079 in | 2 mm | Surface Mount | 1.5 mm | 0.059 " | 2 | 12 | Unshrouded | 4.6 mm 6.8 mm | UL94 V-0 | Solder | All | Cuttable Header | Gold | |
Harwin Inc. | 0.079 in | 2 mm | 0.138 in | 3.5 mm | 1 A | -40 °C | 105 ░C | Black | Square | Nylon 6T Polyamide (PA6T) | Male Pin | Push-Pull | Phosphor Bronze | 0.079 in | 2 mm | Surface Mount | 1.5 mm | 0.059 " | 2 | 8 | Unshrouded | 4.6 mm 6.8 mm | UL94 V-0 | Solder | All | Cuttable Header | Gold |
