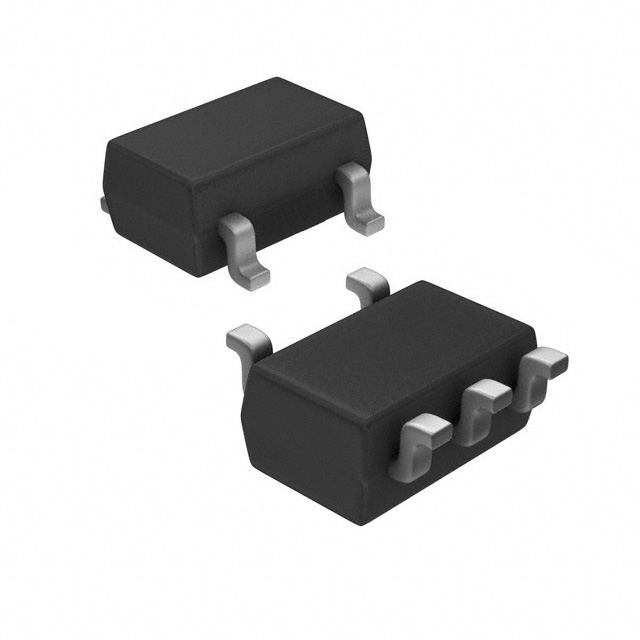

TC7SZ17F,LJ(CT
ActiveToshiba Semiconductor and Storage
IC BUFFER NON-INVERT 5.5V SMV
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TC7SZ17F,LJ(CT
ActiveToshiba Semiconductor and Storage
IC BUFFER NON-INVERT 5.5V SMV
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TC7SZ17F,LJ(CT | TC7SZ17 Series |
|---|---|---|
| Current - Output High, Low [custom] | 32 mA | 32 mA |
| Current - Output High, Low [custom] | 32 mA | 32 mA |
| Input Type | Schmitt Trigger | Schmitt Trigger |
| Logic Type | Buffer, Non-Inverting | Buffer, Non-Inverting |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Bits per Element | 1 | 1 |
| Number of Elements [custom] | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | Push-Pull | Push-Pull |
| Package / Case | SOT-753, SC-74A | 5-TSSOP, SOT-353, SC-70-5, SOT-753, SC-74A, SOT-553 |
| Supplier Device Package | SMV | 5-SSOP, SMV, ESV |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 1.65 V | 1.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.36 | |
| 10 | $ 0.21 | |||
| 25 | $ 0.17 | |||
| 100 | $ 0.13 | |||
| 250 | $ 0.11 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
| Digi-Reel® | 1 | $ 0.36 | ||
| 10 | $ 0.21 | |||
| 25 | $ 0.17 | |||
| 100 | $ 0.13 | |||
| 250 | $ 0.11 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
| Tape & Reel (TR) | 3000 | $ 0.07 | ||
| 6000 | $ 0.06 | |||
| 9000 | $ 0.06 | |||
| 15000 | $ 0.05 | |||
| 21000 | $ 0.05 | |||
| 30000 | $ 0.05 | |||
| 75000 | $ 0.04 | |||
| 150000 | $ 0.04 | |||
TC7SZ17 Series
IC BUFFER NON-INVERT 5.5V USV
| Part | Package / Case | Mounting Type | Current - Output High, Low [custom] | Current - Output High, Low [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Number of Elements [custom] | Logic Type | Output Type | Supplier Device Package | Number of Bits per Element | Input Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Toshiba Semiconductor and Storage TC7SZ17FU,LJ(CT | 5-TSSOP, SC-70-5, SOT-353 | Surface Mount | 32 mA | 32 mA | 85 °C | -40 °C | 5.5 V | 1.65 V | 1 | Buffer, Non-Inverting | Push-Pull | 5-SSOP | 1 | Schmitt Trigger |
Toshiba Semiconductor and Storage TC7SZ17F,LJ(CT | SC-74A, SOT-753 | Surface Mount | 32 mA | 32 mA | 85 °C | -40 °C | 5.5 V | 1.65 V | 1 | Buffer, Non-Inverting | Push-Pull | SMV | 1 | Schmitt Trigger |
Toshiba Semiconductor and Storage TC7SZ17FE,LJ(CT | SOT-553 | Surface Mount | 32 mA | 32 mA | 85 °C | -40 °C | 5.5 V | 1.65 V | 1 | Buffer, Non-Inverting | Push-Pull | ESV | 1 | Schmitt Trigger |
Description
General part information
TC7SZ17 Series
Buffer, Non-Inverting 1 Element 1 Bit per Element Push-Pull Output SMV
