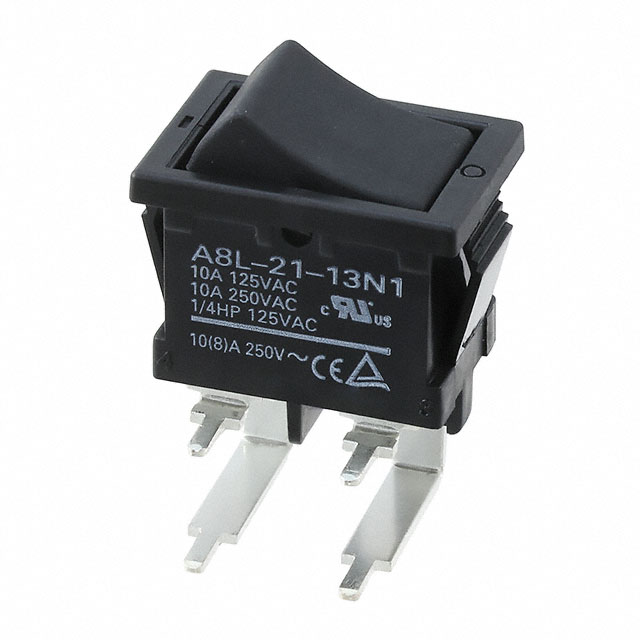

A8L-21-13N1
ActiveOmron Electronics Inc-EMC Div
SWITCH ROCKER DPST 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
A8L-21-13N1
ActiveOmron Electronics Inc-EMC Div
SWITCH ROCKER DPST 10A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A8L-21-13N1 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Approval Agency | cULus, EN, UL |
| Circuit | DPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 10 A |
| Electrical Life | 10000 Cycles |
| Mounting Type | Snap-In, Right Angle, Panel Mount |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 19.2 mm |
| Panel Cutout Dimensions [y] | 17.5 mm |
| Switch Function | On-Off |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.44 | |
| 10 | $ 2.97 | |||
| 25 | $ 2.80 | |||
| 50 | $ 2.68 | |||
| 100 | $ 2.56 | |||
| 300 | $ 2.39 | |||
| 600 | $ 2.29 | |||
| 1200 | $ 2.19 | |||
Description
General part information
A8L-21-13 Series
Rocker Switch DPST 10A (AC) 125 V Panel Mount, Snap-In, Right Angle
