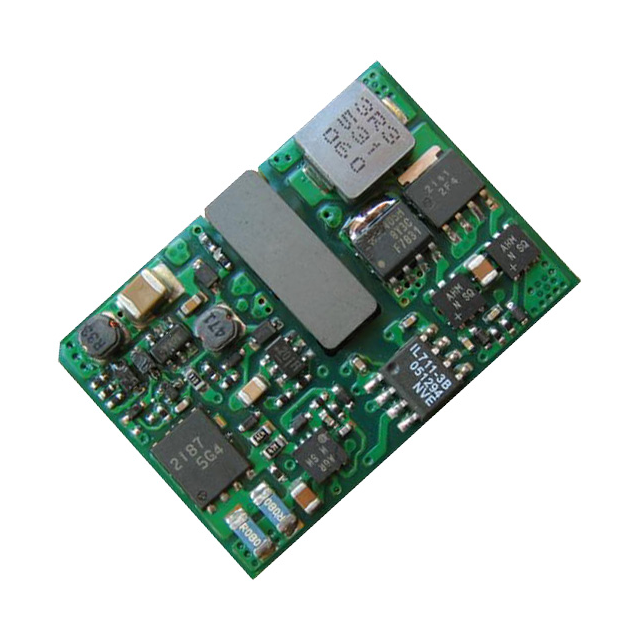

0RSB-40U120

Active

Bel Power Solutions

DC DC CONVERTER 12V 42W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 12V 42W

Technical Specifications

Parameters and characteristics for this part

Specification	0RSB-40U120

Applications	ITE (Commercial)
Current - Output (Max) [Max]	3.5 A
Efficiency	85 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-DIP Module, 1/16 Brick
Power (Watts)	42 W
Size / Dimension [x]	33 mm
Size / Dimension [x]	1.3 "
Size / Dimension [y]	0.9 "
Size / Dimension [y]	22.9 mm
Size / Dimension [z]	0.51 in
Size / Dimension [z]	12.9 mm
Supplier Device Package	Sixteenth Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V

DC DC CONVERTER 12V 42W

Part	Features	Number of Outputs	Supplier Device Package	Power (Watts)	Efficiency	Applications	Current - Output (Max) [Max]	Voltage - Isolation	Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
Bel Power Solutions 0RSB-40U120	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	1	Sixteenth Brick	42 W	85 %	ITE (Commercial)	3.5 A	1.5 kV	Isolated Module	8-DIP Module, 1/16 Brick	85 °C	-40 °C	Through Hole	18 V	75 V	12 V	0.51 in	33 mm	12.9 mm	0.9 "	22.9 mm	1.3 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 12V 3.5A 18V - 75V Input

Technical documentation and resources

No documents available
