Specification	0765603608

Color	Black
Connector Style	Guide Left, Impact
Connector Type	Header, Male Pins
Contact Finish	Gold
Contact Finish Thickness	30 µin
Differential Pairs (Typical)	96
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Columns	16
Number of Positions	288
Number of Positions Loaded	All
Number of Rows	18
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Pitch	0.053 in
Termination	Press-Fit
Voltage Rating	30 V

076560 Series

Part	Number of Positions	Number of Positions Loaded	Differential Pairs (Typical)	Number of Rows	Number of Columns	Connector Type	Color	Pitch	Contact Finish	Contact Finish Thickness	Termination	Mounting Type	Connector Style	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating

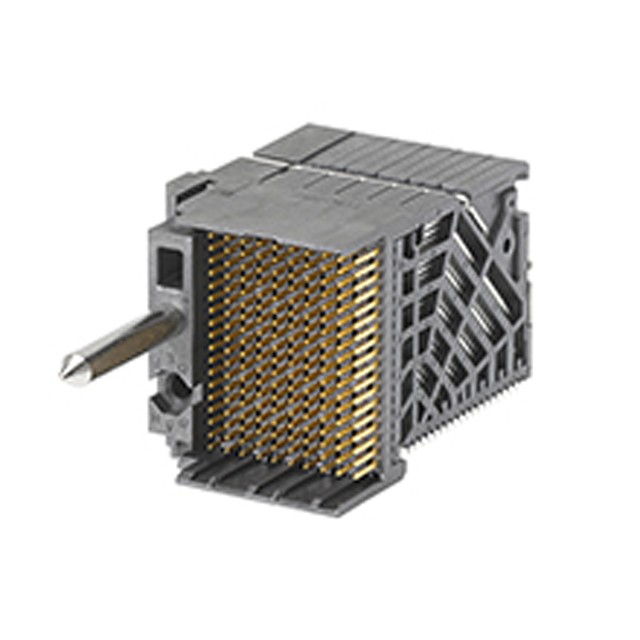

Molex 0765603108	180	All	60	18	10	Header Male Pins	Black	0.053 in	Gold	30 µin	Press-Fit	Board Edge Right Angle Through Hole	Guide Left Impact	UL94 V-0	-55 °C	85 °C	30 V
Molex 0765605108	180	All	60	18	10	Header Male Pins	Black	0.053 in	Gold	30 µin	Press-Fit	Board Edge Right Angle Through Hole	Guide Right Impact	UL94 V-0	-55 °C	85 °C	30 V

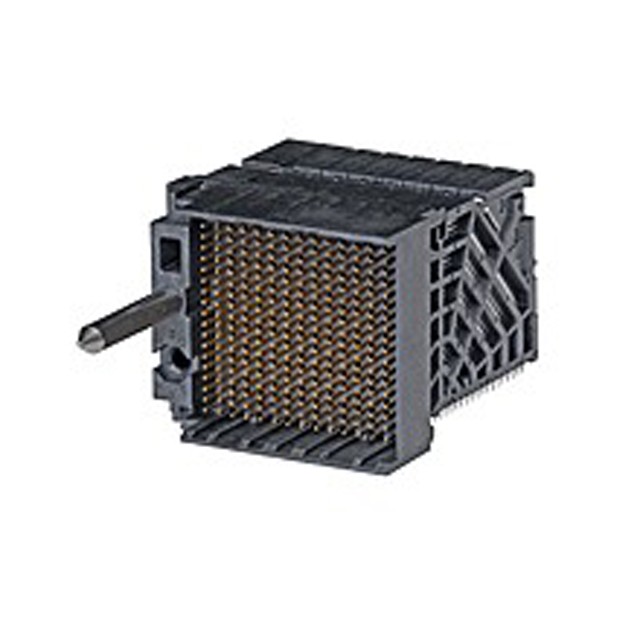

Molex 0765607708	252	All	84	18	14	Header Male Pins	Black	0.053 in	Gold	30 µin	Press-Fit	Board Edge Right Angle Through Hole	Guide Left Impact	UL94 V-0	-55 °C	85 °C	30 V

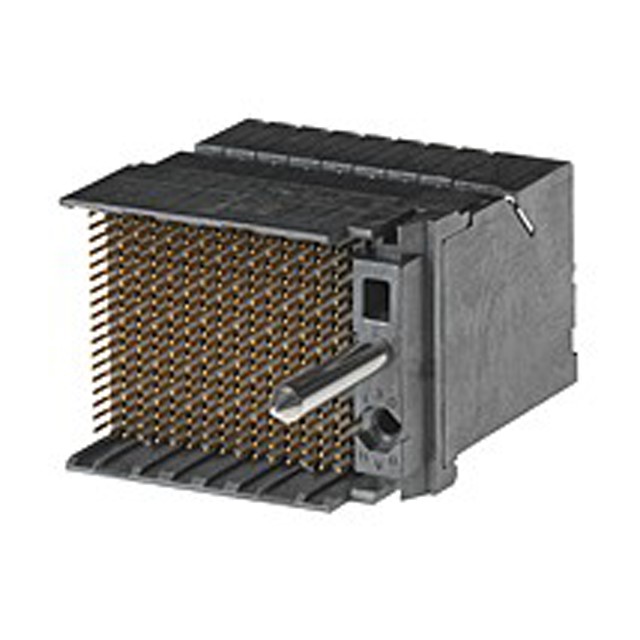

Molex 0765605607	288	All	96	18	16	Header Male Pins	Black	0.053 in	Gold	30 µin	Press-Fit	Board Edge Right Angle Through Hole	Guide Right Impact	UL94 V-0	-55 °C	85 °C	30 V
Molex 0765601107	180	All	60	18	10	Header Male Pins	Black	0.053 in	Gold	30 µin	Press-Fit	Board Edge Right Angle Through Hole	Impact	UL94 V-0	-55 °C	85 °C	30 V
Molex 0765609107	180	All	60	18	10	Header Male Pins	Black	0.053 in	Gold	30 µin	Press-Fit	Board Edge Right Angle Through Hole	Guide Right Impact	UL94 V-0	-55 °C	85 °C	30 V

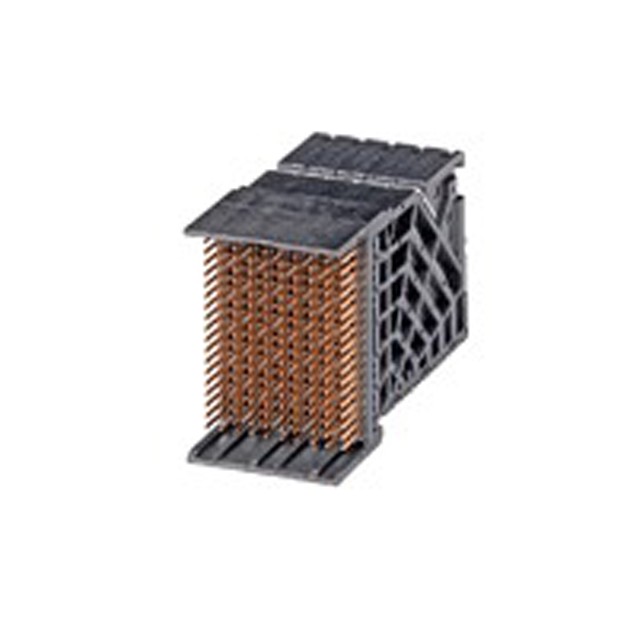

Molex 0765601104	180	All	60	18	10	Header Male Pins	Black	0.053 in	Gold	30 µin	Press-Fit	Board Edge Right Angle Through Hole	Impact	UL94 V-0	-55 °C	85 °C	30 V
Molex 0765603608	288	All	96	18	16	Header Male Pins	Black	0.053 in	Gold	30 µin	Press-Fit	Board Edge Right Angle Through Hole	Guide Left Impact	UL94 V-0	-55 °C	85 °C	30 V
Molex 0765609108	180	All	60	18	10	Header Male Pins	Black	0.053 in	Gold	30 µin	Press-Fit	Board Edge Right Angle Through Hole	Guide Right Impact	UL94 V-0	-55 °C	85 °C	30 V
Molex 0765607607	288	All	96	18	16	Header Male Pins	Black	0.053 in	Gold	30 µin	Press-Fit	Board Edge Right Angle Through Hole	Guide Left Impact	UL94 V-0	-55 °C	85 °C	30 V
