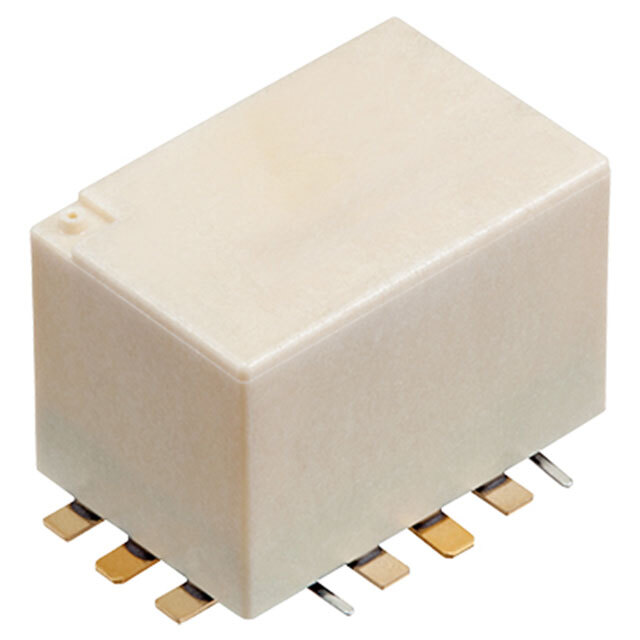

ARN10A12

Active

Panasonic Electric Works

RELAY RF SPDT 12V

Search across all available documentation for this part.

Active

Panasonic Electric Works

RELAY RF SPDT 12V

Technical Specifications

Parameters and characteristics for this part

Part	Features	Coil Voltage	Contact Form	Must Release Voltage	Coil Type	Coil Current	Coil Resistance	Contact Material	Termination Style	Must Operate Voltage	Release Time	Coil Power	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time
Panasonic Electric Works ARN10A12Z	Sealed - Flux Protection	12 VDC	SPDT (1 Form C)	1.2 VDC	Non Latching	26.7 mA	450 Ohms	Gold Plating	Gull Wing	9 VDC	5 ms	320 mW	Surface Mount	85 °C	-40 °C	5 ms
Panasonic Electric Works ARN10A24Z	Sealed - Flux Protection	24 VDC	SPDT (1 Form C)	2.4 VDC	Non Latching	13.3 mA		Gold Plating	Gull Wing	18 VDC	5 ms	320 mW	Surface Mount	85 °C	-40 °C	5 ms
Panasonic Electric Works ARN10A12	Sealed - Flux Protection	12 VDC	SPDT (1 Form C)	1.2 VDC	Non Latching	26.7 mA	450 Ohms	Gold Plating	Gull Wing	9 VDC	5 ms	320 mW	Surface Mount	85 °C	-40 °C	5 ms
Panasonic Electric Works ARN10A4HX	Sealed - Flux Protection	4.5 VDC	SPDT (1 Form C)	0.45 VDC	Non Latching	71.1 mA	63.3 Ohms	Gold Plating	Gull Wing	3.38 VDC	5 ms	320 mW	Surface Mount	85 °C	-40 °C	5 ms
Panasonic Electric Works ARN10A4H	Sealed - Flux Protection	4.5 VDC	SPDT (1 Form C)	0.45 VDC	Non Latching	71.1 mA	63.3 Ohms	Gold Plating	Gull Wing	3.38 VDC	5 ms	320 mW	Surface Mount	85 °C	-40 °C	5 ms
Panasonic Electric Works ARN10A24	Sealed - Flux Protection	24 VDC	SPDT (1 Form C)	2.4 VDC	Non Latching	13.3 mA		Gold Plating	Gull Wing	18 VDC	5 ms	320 mW	Surface Mount	85 °C	-40 °C	5 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY RF SPDT 12V
