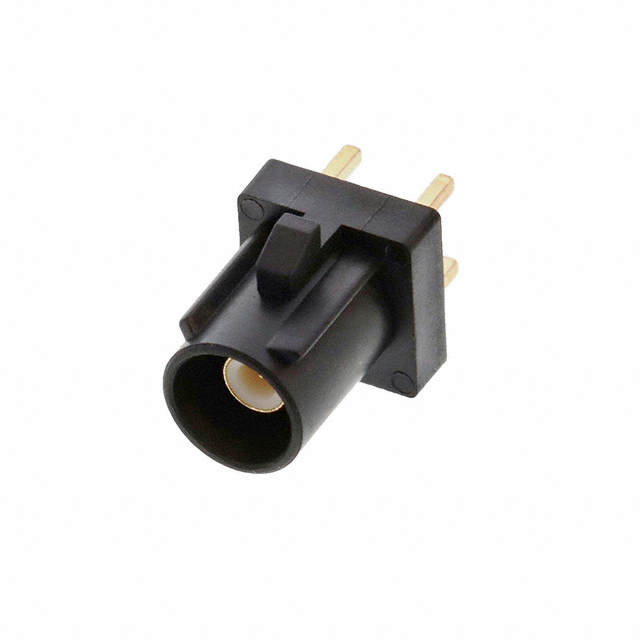

RF55-28A-T-00-50-G-SH
ActiveAdam Tech
CONN SMB PLUG PCB 50OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
RF55-28A-T-00-50-G-SH
ActiveAdam Tech
CONN SMB PLUG PCB 50OHM SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RF55-28A-T-00-50-G-SH |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMB, Fakra |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Locking Ramp |
| Features | Code A |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Black |
| Impedance | 50 Ohms |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
RF55-28 Series
| Part | Dielectric Material | Connector Style | Center Contact Plating | Housing Color | Body Material | Contact Termination | Operating Temperature [Max] | Operating Temperature [Min] | Features | Frequency - Max [Max] | Connector Type | Impedance | Center Contact Material | Body Finish | Number of Ports | Mounting Type | Shield Termination | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | Polytetrafluoroethylene (PTFE) | Fakra SMB | Gold | Carmine Red | Brass | Solder | 85 °C | -40 °C | Code L | 4 GHz | Male Pin Plug | 50 Ohms | Brass | Gold | 1 | Through Hole | Solder | Locking Ramp |
Adam Tech | Polytetrafluoroethylene (PTFE) | Fakra SMB | Gold | Green | Brass | Solder | 85 °C | -40 °C | Code E | 4 GHz | Male Pin Plug | 50 Ohms | Brass | Gold | 1 | Through Hole | Solder | Locking Ramp |
Adam Tech | Polytetrafluoroethylene (PTFE) | Fakra SMB | Gold | Brass | Solder | 85 °C | -40 °C | Code Z | 4 GHz | Male Pin Plug | 50 Ohms | Brass | Gold | 1 | Through Hole | Solder | Locking Ramp | |
Adam Tech | Polytetrafluoroethylene (PTFE) | Fakra SMB | Gold | White | Brass | Solder | 85 °C | -40 °C | Code B | 4 GHz | Male Pin Plug | 50 Ohms | Brass | Gold | 1 | Through Hole | Solder | Locking Ramp |
Adam Tech | Polytetrafluoroethylene (PTFE) | Fakra SMB | Gold | Black | Brass | Solder | 85 °C | -40 °C | Code A | 4 GHz | Male Pin Plug | 50 Ohms | Brass | Gold | 1 | Through Hole | Solder | Locking Ramp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1000 | $ 1.71 | |
Description
General part information
RF55-28 Series
SMB, Fakra Connector Plug, Male Pin 50 Ohms Through Hole Solder
