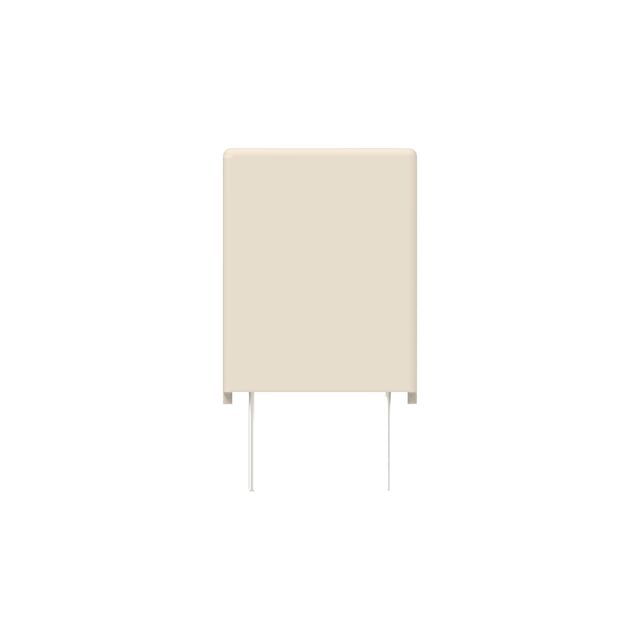

1-1422002-0
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GENERAL PURPOSE DPDT 2A 3V
Deep-Dive with AI
Search across all available documentation for this part.
1-1422002-0
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GENERAL PURPOSE DPDT 2A 3V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1422002-0 |
|---|---|
| Coil Current | 46.7 mA |
| Coil Resistance | 64 Ohms |
| Coil Type | Latching, Dual Coil |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | 2 A |
| Load - Max Switching | 440 W, 500 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 2.25 VDC |
| Operate Time | 4 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 4 ms |
| Switching Voltage | 250 VAC, 220 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.27 | |
| 10 | $ 4.00 | |||
| 25 | $ 3.56 | |||
| 50 | $ 3.38 | |||
| 100 | $ 3.20 | |||
| 250 | $ 2.84 | |||
| 500 | $ 2.67 | |||
| 1000 | $ 2.49 | |||
Description
General part information
1422002 Series
General Purpose Relay DPDT (2 Form C) Through Hole
Documents
Technical documentation and resources
No documents available
