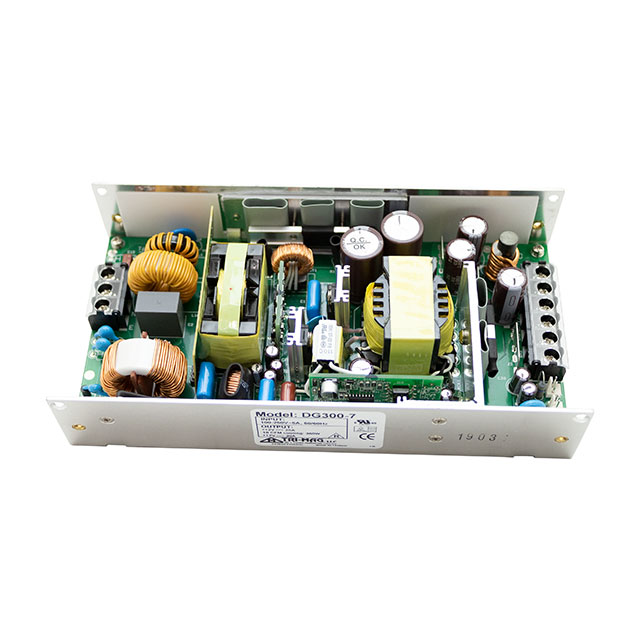

DG300-7

Active

Tri-Mag, LLC

AC/DC CONVERTER 12V 300W

Search across all available documentation for this part.

Active

Tri-Mag, LLC

AC/DC CONVERTER 12V 300W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC CONVERTER 18V 300W

Part	Voltage - Output 1	Power (Watts)	Features	Operating Temperature [Min]	Operating Temperature [Max]	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 1	Mounting Type	Number of Outputs	Efficiency	Size / Dimension [y]	Size / Dimension [z]
Tri-Mag, LLC DG300-3	18 V	300 W	PFC, Universal Input	-20 °C	70 °C	Open Frame	4.2 "	37 mm	203.2 mm	1.46 "	106.7 mm	8 "	ITE (Commercial)	90 VAC	264 VAC	17 A	Chassis Mount	1	91 %
Tri-Mag, LLC DG300-7	12 V	300 W	PFC, Universal Input	-20 °C	70 °C	Open Frame	3.75 "		203.2 mm	1.46 "		8 "	ITE (Commercial)	90 VAC	264 VAC	25 A	Chassis Mount	1	91 %	95.3 mm	37 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 131.18

General part information

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
