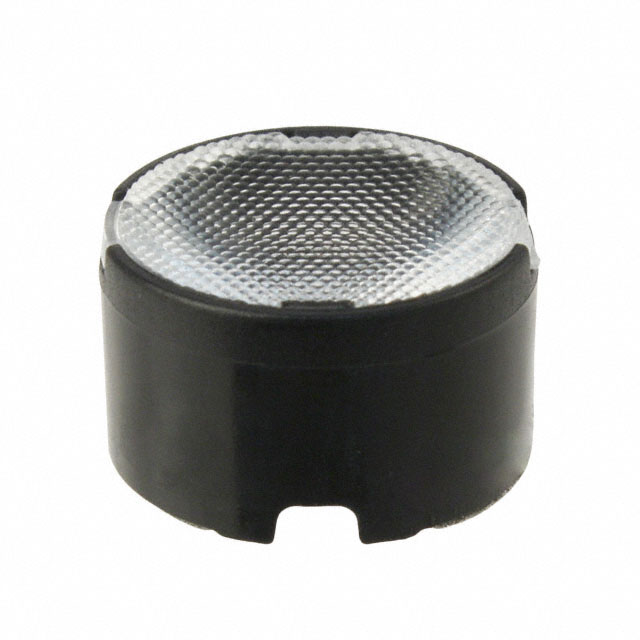

FA11206_TINA-M

Active

LEDiL

LED LENS, LENS WITH HOLDER, MEDIUM, 16.1 MM, ROUND, PMMA (POLYMETHYLMETHACRYLATE)

Search across all available documentation for this part.

Active

LEDiL

LED LENS, LENS WITH HOLDER, MEDIUM, 16.1 MM, ROUND, PMMA (POLYMETHYLMETHACRYLATE)

Technical Specifications

Parameters and characteristics for this part

Specification	FA11206_TINA-M

Color	Clear
For Use With/Related Manufacturer	Osram, Samsung, Nichia, Cree
Lens Size [diameter]	16.1 mm
Lens Transparency	Diffused
Material	Acrylic
Mounting Type	Adhesive Tape
Number of LEDs	1
Optical Pattern	Medium
Type	Lens With Holder
Viewing Angle [Max]	32 °
Viewing Angle [Min]	24 °

Part	Optical Pattern	Color	Type	Viewing Angle [Max]	Viewing Angle [Min]	Lens Size [diameter]	Lens Transparency	For Use With/Related Manufacturer	Material	Mounting Type	Number of LEDs
LEDiL FA11206_TINA-M	Medium	Clear	Lens With Holder	32 °	24 °	16.1 mm	Diffused	Cree Nichia Osram Samsung	Acrylic	Adhesive Tape	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Lens With Holder Clear 24° ~ 32° Medium Adhesive Tape
