BA28
ActiveL-com
RF / COAXIAL ADAPTER, SMA, PLUG, BNC, PLUG, STRAIGHT ADAPTER, 50 OHM
Deep-Dive with AI
Search across all available documentation for this part.
BA28
ActiveL-com
RF / COAXIAL ADAPTER, SMA, PLUG, BNC, PLUG, STRAIGHT ADAPTER, 50 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BA28 | - Series |
|---|---|---|
| Adapter Series | BNC to SMA | BNC to BNC, BNC to SMA, Dual, BNC to N, BNC to F, SMA to SMA, SMA to SMA, Dual, SMA to TNC |
| Adapter Type | Plug to Plug | Jack to Jack, Plug to Plug, Plug to Jack |
| Body Finish | Nickel | Nickel, Gold |
| Body Material | Brass | Brass |
| Center Contact Material | Brass | Brass, Copper Alloy, Beryllium Copper |
| Center Contact Plating | Gold | Gold, Nickel |
| Center Gender | Male to Male | Female to Female, Male to Male |
| Connector Style | - | SMA |
| Connector Type | - | Male Pin, Plug |
| Contact Finish | - | Gold |
| Contact Material | - | Brass |
| Conversion Type | Between Series | Same Series, Between Series |
| Convert From (Adapter End) | BNC Plug, Male Pin | BNC Jack, Female Socket, BNC Plug, Male Pin, SMA Plug, Male Pin, SMA Jack |
| Convert To (Adapter End) | SMA Plug, Male Pin | Female Socket, BNC Jack, SMA Plug, Male Pin, Female Socket (2), N Plug, F Jack, N Jack, SMA Jack, TNC Jack |
| Dielectric Material | Polyoxymethylene (POM) Acetal | Polyoxymethylene (POM) Acetal, Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock, Threaded | Bayonet Lock, Threaded |
| Features | - | Green Cap |
| Frequency - Max | - | 6000 MHz |
| Impedance | 50 Ohms | 50 - 75 Ohms |
| Insertion Loss | - | 0.15 dB |
| Mounting Feature | - | Bulkhead |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Free Hanging, Cap, Right Angle |
| Style | Straight | Straight, T-Shape, Right Angle |
- Series
RF / COAXIAL ADAPTER, BNC, JACK, BNC, JACK, STRAIGHT BULKHEAD ADAPTER, 75 OHM
| Part | Body Material | Adapter Type | Fastening Type | Dielectric Material | Center Contact Material | Convert To (Adapter End) | Center Contact Plating | Body Finish | Mounting Feature | Center Gender | Conversion Type | Adapter Series | Convert From (Adapter End) | Impedance | Style | Mounting Type | Insertion Loss | Frequency - Max [Max] | Features | Contact Finish | Connector Type | Connector Style | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
L-com BA039 | Brass | Jack to Jack | Bayonet Lock | Polyoxymethylene (POM) Acetal | Brass | BNC Jack, Female Socket | Gold | Nickel | Bulkhead | Female to Female | Same Series | BNC to BNC | BNC Jack, Female Socket | 75 Ohms | Straight | ||||||||
L-com BA28 | Brass | Plug to Plug | Bayonet Lock, Threaded | Polyoxymethylene (POM) Acetal | Brass | Male Pin, SMA Plug | Gold | Nickel | Male to Male | Between Series | BNC to SMA | BNC Plug, Male Pin | 50 Ohms | Straight | Free Hanging (In-Line) | ||||||||
L-com BA250 | Brass | Plug to Jack | Bayonet Lock | Polyoxymethylene (POM) Acetal | Brass | BNC Jack, Female Socket (2) | Gold | Nickel | Same Series | BNC to BNC, Dual | BNC Plug, Male Pin | 50 Ohms | T-Shape | Free Hanging (In-Line) | |||||||||
L-com BN107 | Brass | Plug to Plug | Bayonet Lock, Threaded | Polytetrafluoroethylene (PTFE) | Brass | Male Pin, N Plug | Gold | Nickel | Male to Male | Between Series | BNC to N | BNC Plug, Male Pin | 50 Ohms | Straight | Free Hanging (In-Line) | ||||||||
L-com BA036 | Brass | Jack to Jack | Bayonet Lock | Polyoxymethylene (POM) Acetal | Brass | BNC Jack, Female Socket | Gold | Nickel | Bulkhead | Female to Female | Same Series | BNC to BNC | BNC Jack, Female Socket | 75 Ohms | Straight | ||||||||
L-com BA125 | Brass | Plug to Jack | Bayonet Lock, Threaded | Polyoxymethylene (POM) Acetal | Brass | F Jack, Female Socket | Gold | Nickel | Between Series | BNC to F | BNC Plug, Male Pin | 50 Ohms | Straight | Free Hanging (In-Line) | |||||||||
L-com BA25 | Brass | Plug to Jack | Polytetrafluoroethylene (PTFE) | Brass | Female Socket, N Jack | Gold | Nickel | Between Series | SMA Plug, Male Pin | 50 Ohms | Straight | Free Hanging (In-Line) | |||||||||||
L-com BA21 | Brass | Jack to Jack | Polytetrafluoroethylene (PTFE) | Brass | Female Socket, SMA Jack | Gold | Nickel | Bulkhead | Female to Female | Same Series | SMA to SMA | Female Socket, SMA Jack | 50 Ohms | Straight | 0.15 dB | 6000 MHz | |||||||
L-com BA019 | Brass | Jack to Jack | Bayonet Lock | Polyoxymethylene (POM) Acetal | Brass | BNC Jack, Female Socket (2) | Gold | Nickel | Female to Female | Same Series | BNC to BNC, Dual | BNC Jack, Female Socket | 75 Ohms | T-Shape | Free Hanging (In-Line) | ||||||||
L-com BA19 | Brass | Plug to Jack | Polytetrafluoroethylene (PTFE) | Female Socket (2), SMA Jack | Gold | Nickel | Same Series | SMA to SMA, Dual | SMA Plug, Male Pin | 50 Ohms | T-Shape | Free Hanging (In-Line) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
- Series

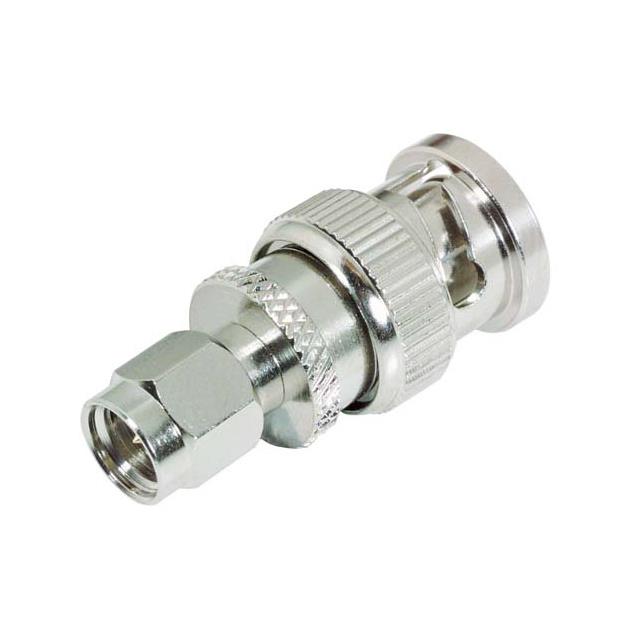

Adapter Coaxial Connector BNC Plug, Male Pin To SMA Plug, Male Pin 50 Ohms
