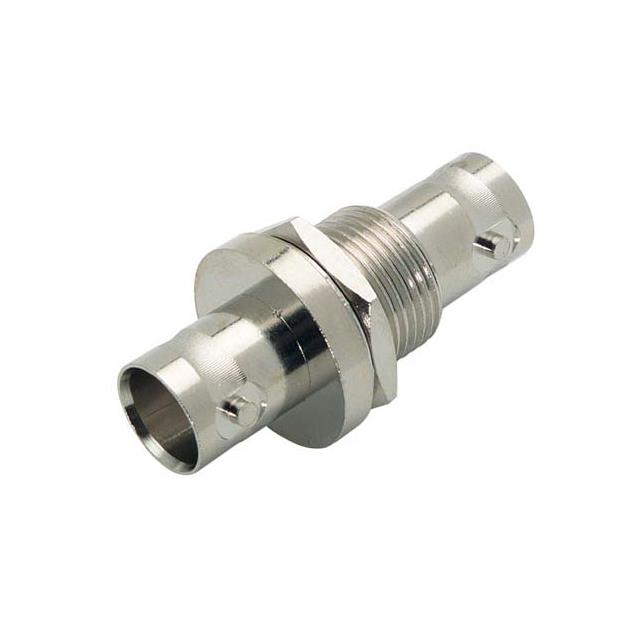

RF / COAXIAL ADAPTER, BNC, JACK, BNC, JACK, STRAIGHT BULKHEAD ADAPTER, 75 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BA036

Active

L-com

RF / COAXIAL ADAPTER, BNC, JACK, BNC, JACK, STRAIGHT BULKHEAD ADAPTER, 75 OHM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 12.39
		10	$ 10.53
		25	$ 9.87
		50	$ 9.40
		100	$ 8.95
		250	$ 8.39
		500	$ 7.99
		1000	$ 7.61
Newark	Each	1	$ 8.99

Description

General part information

- Series

Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 75 Ohms

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BA036	- Series

Adapter Series	BNC to BNC	BNC to BNC, BNC to SMA, Dual, BNC to N, BNC to F, SMA to SMA, SMA to SMA, Dual, SMA to TNC
Adapter Type	Jack to Jack	Jack to Jack, Plug to Plug, Plug to Jack
Body Finish	Nickel	Nickel, Gold
Body Material	Brass	Brass
Center Contact Material	Brass	Brass, Copper Alloy, Beryllium Copper
Center Contact Plating	Gold	Gold, Nickel
Center Gender	Female to Female	Female to Female, Male to Male
Connector Style	-	SMA
Connector Type	-	Male Pin, Plug
Contact Finish	-	Gold
Contact Material	-	Brass
Conversion Type	Same Series	Same Series, Between Series
Convert From (Adapter End)	BNC Jack, Female Socket	BNC Jack, Female Socket, BNC Plug, Male Pin, SMA Plug, Male Pin, SMA Jack
Convert To (Adapter End)	Female Socket, BNC Jack	Female Socket, BNC Jack, SMA Plug, Male Pin, Female Socket (2), N Plug, F Jack, N Jack, SMA Jack, TNC Jack
Dielectric Material	Polyoxymethylene (POM) Acetal	Polyoxymethylene (POM) Acetal, Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock, Threaded
Features	-	Green Cap
Frequency - Max	-	6000 MHz
Impedance	75 Ohms	50 - 75 Ohms
Insertion Loss	-	0.15 dB
Mounting Feature	Bulkhead	Bulkhead
Mounting Type	-	Free Hanging (In-Line), Free Hanging, Cap, Right Angle
Style	Straight	Straight, T-Shape, Right Angle

- Series

RF / COAXIAL ADAPTER, BNC, JACK, BNC, JACK, STRAIGHT BULKHEAD ADAPTER, 75 OHM

Part	Body Material	Adapter Type	Fastening Type	Dielectric Material	Center Contact Material	Convert To (Adapter End)	Center Contact Plating	Body Finish	Mounting Feature	Center Gender	Conversion Type	Adapter Series	Convert From (Adapter End)	Impedance	Style	Mounting Type	Insertion Loss	Frequency - Max [Max]
L-com BA039	Brass	Jack to Jack	Bayonet Lock	Polyoxymethylene (POM) Acetal	Brass	BNC Jack, Female Socket	Gold	Nickel	Bulkhead	Female to Female	Same Series	BNC to BNC	BNC Jack, Female Socket	75 Ohms	Straight
L-com BA28	Brass	Plug to Plug	Bayonet Lock, Threaded	Polyoxymethylene (POM) Acetal	Brass	Male Pin, SMA Plug	Gold	Nickel		Male to Male	Between Series	BNC to SMA	BNC Plug, Male Pin	50 Ohms	Straight	Free Hanging (In-Line)
L-com BA250	Brass	Plug to Jack	Bayonet Lock	Polyoxymethylene (POM) Acetal	Brass	BNC Jack, Female Socket (2)	Gold	Nickel			Same Series	BNC to BNC, Dual	BNC Plug, Male Pin	50 Ohms	T-Shape	Free Hanging (In-Line)
L-com BN107	Brass	Plug to Plug	Bayonet Lock, Threaded	Polytetrafluoroethylene (PTFE)	Brass	Male Pin, N Plug	Gold	Nickel		Male to Male	Between Series	BNC to N	BNC Plug, Male Pin	50 Ohms	Straight	Free Hanging (In-Line)
L-com BA036	Brass	Jack to Jack	Bayonet Lock	Polyoxymethylene (POM) Acetal	Brass	BNC Jack, Female Socket	Gold	Nickel	Bulkhead	Female to Female	Same Series	BNC to BNC	BNC Jack, Female Socket	75 Ohms	Straight
L-com BA125	Brass	Plug to Jack	Bayonet Lock, Threaded	Polyoxymethylene (POM) Acetal	Brass	F Jack, Female Socket	Gold	Nickel			Between Series	BNC to F	BNC Plug, Male Pin	50 Ohms	Straight	Free Hanging (In-Line)
L-com BA25	Brass	Plug to Jack		Polytetrafluoroethylene (PTFE)	Brass	Female Socket, N Jack	Gold	Nickel			Between Series		SMA Plug, Male Pin	50 Ohms	Straight	Free Hanging (In-Line)
L-com BA21	Brass	Jack to Jack		Polytetrafluoroethylene (PTFE)	Brass	Female Socket, SMA Jack	Gold	Nickel	Bulkhead	Female to Female	Same Series	SMA to SMA	Female Socket, SMA Jack	50 Ohms	Straight		0.15 dB	6000 MHz
L-com BA019	Brass	Jack to Jack	Bayonet Lock	Polyoxymethylene (POM) Acetal	Brass	BNC Jack, Female Socket (2)	Gold	Nickel		Female to Female	Same Series	BNC to BNC, Dual	BNC Jack, Female Socket	75 Ohms	T-Shape	Free Hanging (In-Line)
L-com BA19	Brass	Plug to Jack		Polytetrafluoroethylene (PTFE)		Female Socket (2), SMA Jack	Gold	Nickel			Same Series	SMA to SMA, Dual	SMA Plug, Male Pin	50 Ohms	T-Shape	Free Hanging (In-Line)
