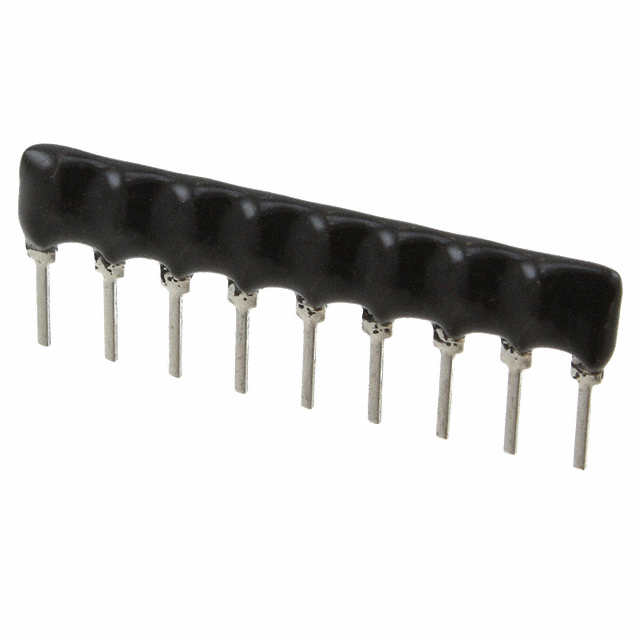

4609M-901-223LF

Obsolete

Bourns Inc.

CAP ARRAY 0.022UF 50V X7R 9SIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4609M-901-223LF

Obsolete

Bourns Inc.

CAP ARRAY 0.022UF 50V X7R 9SIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4609M-901-223LF

Capacitance	0.022 µF
Circuit Type	Bussed
Height - Seated (Max) [Max] [z]	5.08 mm
Height - Seated (Max) [Max] [z]	0.2 "
Mounting Type	Through Hole
Number of Capacitors	8
Package / Case	9-SIP
Size / Dimension [x]	22.91 mm
Size / Dimension [x]	0.902 in
Size / Dimension [y]	0.15 "
Size / Dimension [y]	3.81 mm
Temperature Coefficient	X7R
Tolerance	20 %
Voltage - Rated	50 VDC

4609M Series

Part	Mounting Type	Resistor-Ratio-Drift	Package / Case	Height - Seated (Max)	Height - Seated (Max) [Max]	Circuit Type	Resistance (Ohms)	Power Per Element	Number of Resistors	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Supplier Device Package	Number of Pins	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Number of Capacitors	Voltage - Rated	Temperature Coefficient	Capacitance	Resistance (Ohms)
Bourns Inc. 4609M-101-151LF	Through Hole	50 ppm/°C	9-SIP	6.35 mm	0.25 in	Bussed	150 Ohms	250 mW	8	0.098 in	0.898 in	22.81 mm	2.49 mm	2 %	9-SIP	9	100 ppm/°C	-55 °C	125 °C
Bourns Inc. 4609M-901-102LF	Through Hole		9-SIP			Bussed				0.15 "	0.902 in	22.91 mm	3.81 mm	20 %						5.08 mm	0.2 "	8	50 VDC	X7R	0.001 µF
Bourns Inc. 4609M-901-223LF	Through Hole		9-SIP			Bussed				0.15 "	0.902 in	22.91 mm	3.81 mm	20 %						5.08 mm	0.2 "	8	50 VDC	X7R	0.022 µF
Bourns Inc. 4609M-901-472LF	Through Hole		9-SIP			Bussed				0.15 "	0.902 in	22.91 mm	3.81 mm	20 %						5.08 mm	0.2 "	8	50 VDC	X7R	4700 pF
Bourns Inc. 4609M-901-101LF	Through Hole		9-SIP			Bussed				0.15 "	0.902 in	22.91 mm	3.81 mm	10 %						5.08 mm	0.2 "	8	50 VDC	C0G NP0	100 pF
Bourns Inc. 4609M-101-751LF	Through Hole	50 ppm/°C	9-SIP	6.35 mm	0.25 in	Bussed	750 Ohms	250 mW	8	0.098 in	0.898 in	22.81 mm	2.49 mm	2 %	9-SIP	9	100 ppm/°C	-55 °C	125 °C
Bourns Inc. 4609M-101-562LF	Through Hole	50 ppm/°C	9-SIP	6.35 mm	0.25 in	Bussed	5.6 kOhms	250 mW	8	0.098 in	0.898 in	22.81 mm	2.49 mm	2 %	9-SIP	9	100 ppm/°C	-55 °C	125 °C
Bourns Inc. 4609M-101-323LF	Through Hole	50 ppm/°C	9-SIP	6.35 mm	0.25 in	Bussed		250 mW	8	0.098 in	0.898 in	22.81 mm	2.49 mm	2 %	9-SIP	9	100 ppm/°C	-55 °C	125 °C							32k

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

4609M Series

0.022µF Bussed Capacitor 8 Array 50 V X7R 9-SIP
