JN1HS04MK1-R
ActiveJAE Electronics

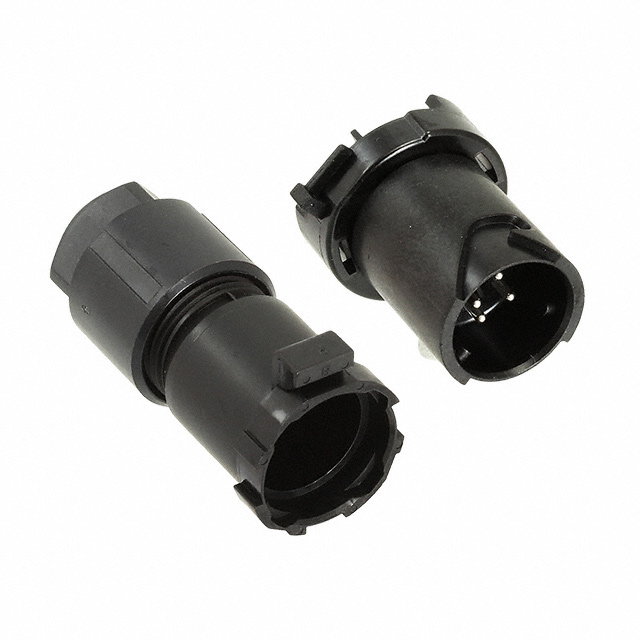

CONN RCPT MALE 4P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JN1HS04MK1-R
ActiveJAE Electronics
CONN RCPT MALE 4P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JN1HS04MK1-R |
|---|---|
| Backshell Material, Plating | Synthetic Resin |
| Cable Opening [Max] [custom] | 0.287 in |
| Cable Opening [Max] [custom] | 7.3 mm |
| Cable Opening [Min] [custom] | 0.224 in |
| Cable Opening [Min] [custom] | 5.7 mm |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A |
| Fastening Type | Push-Twist |
| Features | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Synthetic Resin |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | N |
| Primary Material | Plastic |
| Shell Material | Synthetic Resin |
| Shell Size - Insert | S |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.16 | |
| 10 | $ 15.73 | |||
| 25 | $ 14.91 | |||
| 50 | $ 14.70 | |||
| 100 | $ 12.97 | |||
| 250 | $ 12.10 | |||
| 500 | $ 11.84 | |||
Description
General part information
JN1HS04M Series
4 (3 + PE) Position Circular Connector Receptacle, Male Pins Solder Cup
