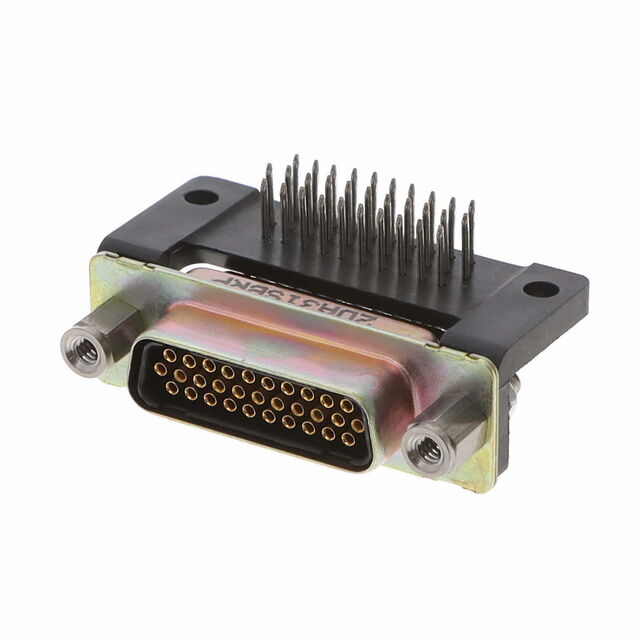

Specification	2DA31SBRP

Connector Layout	A, DA, Double Density
Connector Style	D-Sub, Double Density
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Dielectric Material	Glass Filled, Polyamide (PA), Nylon
Finish	Yellow Chromate Plated Cadmium
Flange Feature	Female Screwlock (4-40), Mating Side
Mounting Type	Through Hole, Right Angle
Number of Positions	31
Number of Rows	3
Shell Material	Steel
Shell Size	2
Termination	Solder

2DA Series

Part	Dielectric Material	Contact Material	Connector Style	Mounting Type	Finish	Shell Material	Termination	Connector Layout	Shell Size	Number of Rows	Contact Finish	Connector Type	Contact Type	Flange Feature	Number of Positions	Note	Operating Temperature (Min)	Operating Temperature (Max)	Color
ITT Cannon, LLC 2DA31SBR	Glass Filled Nylon Polyamide (PA)	Copper Alloy	D-Sub Double Density	Right Angle Through Hole	Yellow Chromate Plated Cadmium	Steel	Solder	A DA Double Density	2	3	Gold	Female Sockets Receptacle	Signal	Housing Shell (Unthreaded)	31
ITT Cannon, LLC 2DA31S-F172-F0	Glass Filled Nylon Polyamide (PA)		D-Sub Double Density	Panel Mount	Yellow Chromate Plated Cadmium	Steel		A DA Double Density	2	3		Receptacle for Female Contacts	Signal	Female Screwlock (4-40) Mating Side	31	Contacts Not Included	-55 °C	85 °C	Black
ITT Cannon, LLC 2DA31SBRP	Glass Filled Nylon Polyamide (PA)	Copper Alloy	D-Sub Double Density	Right Angle Through Hole	Yellow Chromate Plated Cadmium	Steel	Solder	A DA Double Density	2	3	Gold	Female Sockets Receptacle	Signal	Female Screwlock (4-40) Mating Side	31
ITT Cannon, LLC 2DA31S-F173-F0	Glass Filled Nylon Polyamide (PA)		D-Sub Double Density	Panel Mount	Yellow Chromate Plated Cadmium	Steel		A DA Double Density	2	3		Receptacle for Female Contacts	Signal	Female Screwlock (4-40) Mating Side	31	Contacts Not Included	-55 °C	85 °C	Black
