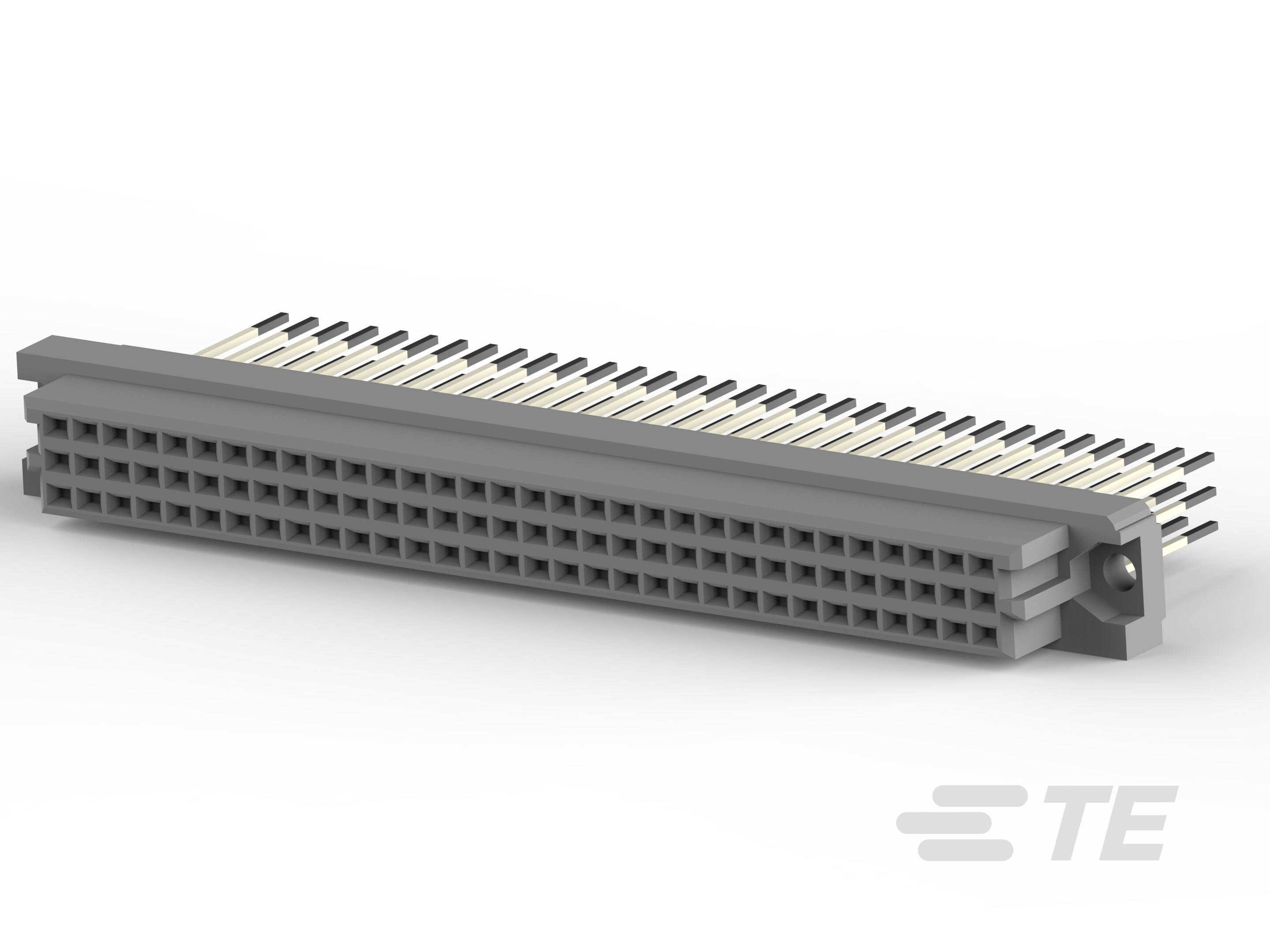

Specification	5148059-5

Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Level, Class	2
Material - Insulation	Glass Filled, Polymer Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	96
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch	0.1 in
Style	C
Termination	Press-Fit

5148059 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Material - Insulation	Material Flammability Rating	Number of Rows	Level, Class	Pitch	Connector Type	Style	Number of Positions Loaded	Termination	Contact Finish	Mounting Type	Number of Positions
TE Connectivity AMP Connectors 5148059-5	125 °C	-55 °C	Glass Filled Polymer Thermoplastic	UL94 V-0	3	2	0.1 in	Female Sockets Receptacle	C	All	Press-Fit	Gold	Through Hole	96
