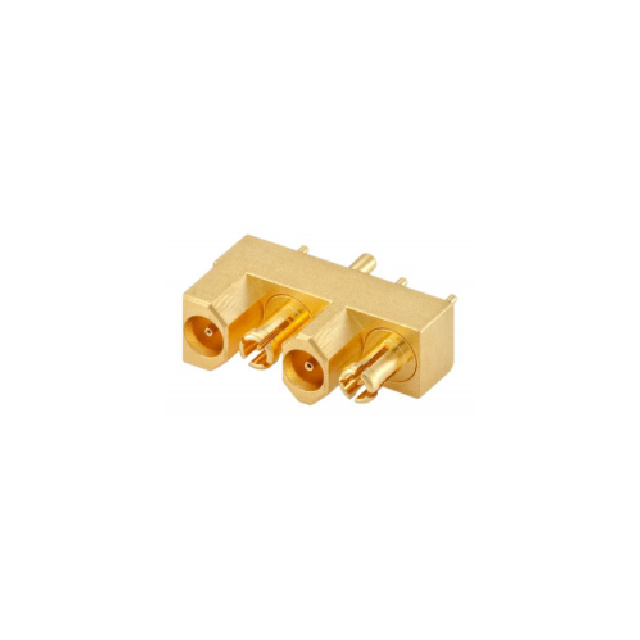

MF2C117-40ML5-NM

Active

Rosenberger

MINI COAX NON MAGNETIC MULTIPORT

Search across all available documentation for this part.

Active

Rosenberger

MINI COAX NON MAGNETIC MULTIPORT

Technical Specifications

Parameters and characteristics for this part

Specification	MF2C117-40ML5-NM

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Miniature Coaxial
Connector Type	Jack, Female Socket (2), Plug, Male Pin (2)
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	20 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Surface Mount, Through Hole
Number of Ports	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Connector Style	Center Contact Material	Dielectric Material	Voltage Rating	Number of Ports	Center Contact Plating	Mounting Type	Body Finish	Body Material	Contact Termination	Impedance	Mating Cycles	Connector Type	Shield Termination	Frequency - Max [Max]	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color
Rosenberger MF2C117-40ML5-NM	Miniature Coaxial	Beryllium Copper	Polytetrafluoroethylene (PTFE)	500 V	4	Gold	Surface Mount Through Hole	Gold	Brass	Solder	50 Ohms	500	Jack Female Socket (2) Plug Male Pin (2)	Solder	20 GHz	Snap-On	125 °C	-40 °C	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Miniature Coaxial Connector Jack, Female Socket (2); Plug, Male Pin (2) 50 Ohms Surface Mount, Through Hole Solder
