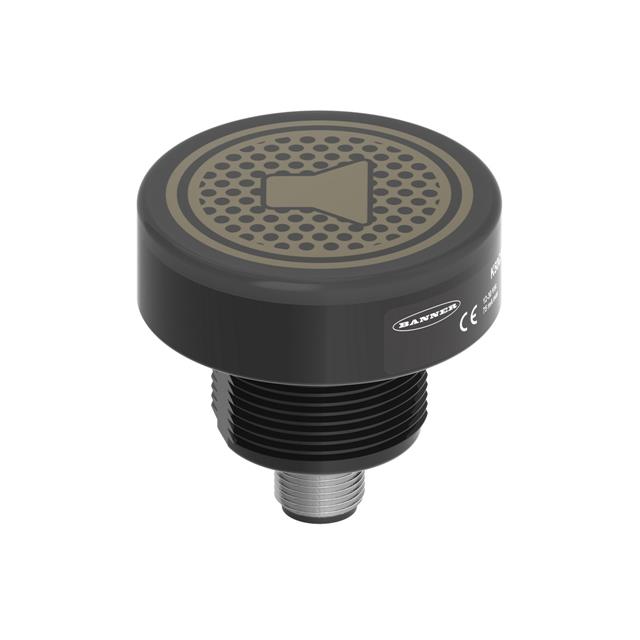

Specification	K50PCLKAQ

Features	Alarm
Function - Audible	Programmable
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP66, IP67, IP68
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-40 °C
Termination Style	Connector
Type	Acoustic Element
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	18 VAC

K50PCL Series

Part	Function - Audible	Termination Style	Type	Features	Operating Temperature (Max)	Operating Temperature (Min)	Ingress Protection IP Rating	Ingress Protection Description	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)
BANNER ENGINEERING K50PCLAQ	Programmable	Connector	Acoustic Element	Alarm	50 °C	-40 °C	IP67 IP69K	Dust Tight Water Resistant Waterproof	12 VDC	30 VDC
BANNER ENGINEERING K50PCLA	Programmable	Cable with Connector	Acoustic Element	Alarm	50 °C	-40 °C	IP67 IP69K	Dust Tight Water Resistant Waterproof	12 VDC	30 VDC
BANNER ENGINEERING K50PCLKAQ	Programmable	Connector	Acoustic Element	Alarm	50 °C	-40 °C	IP66 IP67 IP68	Dust Tight Water Resistant Waterproof	18 VAC	30 VDC
BANNER ENGINEERING K50PCLAQP	Programmable	Cable with Connector	Acoustic Element	Alarm	50 °C	-40 °C	IP66 IP67 IP68	Dust Tight Water Resistant Waterproof	18 VAC	30 VDC
BANNER ENGINEERING K50PCLKAQP	Programmable	Cable with Connector	Acoustic Element	Alarm	50 °C	-40 °C	IP66 IP67 IP68	Dust Tight Water Resistant Waterproof	18 VAC	30 VDC
