3044-0-15-15-23-27-04-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .045-.065 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
3044-0-15-15-23-27-04-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .045-.065 SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3044-0-15-15-23-27-04-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.065 in |
| Accepts Pin Diameter [Max] | 1.65 mm |
| Accepts Pin Diameter [Min] | 0.045 in |
| Accepts Pin Diameter [Min] | 1.14 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 2.97 mm |
| Flange Diameter [diameter] | 0.117 in |
| Length - Overall | 10.41 mm |
| Length - Overall | 0.41 in |
| Mounting Hole Diameter [diameter] | 0.104 in |
| Mounting Hole Diameter [diameter] | 2.64 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.088 in |
| Pin Hole Diameter [diameter] | 2.24 mm |
| Socket Depth | 6.6 mm |
| Socket Depth | 0.26 in |
| Tail Diameter [diameter] | 1.73 mm |
| Tail Diameter [diameter] | 0.068 in |
| Tail Type | Standard Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.00 | |
| 10 | $ 0.85 | |||
| 25 | $ 0.80 | |||
| 50 | $ 0.76 | |||
| 100 | $ 0.72 | |||
| 250 | $ 0.68 | |||
| 500 | $ 0.64 | |||
| 1000 | $ 0.61 | |||
| 2500 | $ 0.57 | |||
Description
General part information
3044-0 Series

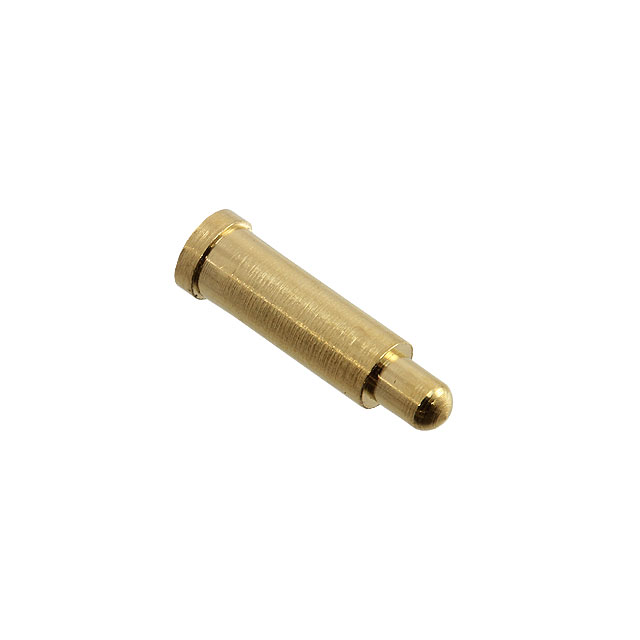

Pin Receptacle Connector 0.045" ~ 0.065" (1.14mm ~ 1.65mm) Standard Tail Solder
Documents
Technical documentation and resources
No documents available
