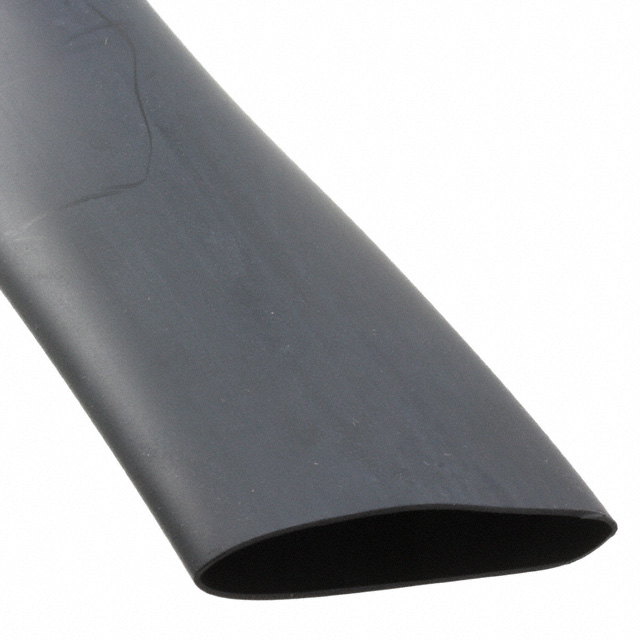

PSTH 1 1/4 BK SPL SCX SPEC
Active3M (TC)
HEATSHRK PSTH 1 1/4"X4" 50=50PC
Deep-Dive with AI
Search across all available documentation for this part.
PSTH 1 1/4 BK SPL SCX SPEC
Active3M (TC)
HEATSHRK PSTH 1 1/4"X4" 50=50PC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PSTH 1 1/4 BK SPL SCX SPEC |
|---|---|
| Color | Black |
| Features | Self Extinguishing, Chemical Resistant |
| Inner Diameter - Recovered [diameter] | 0.625 in |
| Inner Diameter - Recovered [diameter] | 15.88 mm |
| Inner Diameter - Supplied [diameter] | 1.25 in |
| Inner Diameter - Supplied [diameter] | 31.75 mm |
| Length | Enter Number of Feet in Order Quantity |
| Length | 3 ", 1 in, 1.5 ", 6 " |
| Length | 76.2 mm, 25.4 mm, 38.1 mm, 1.52 m, 152.4 mm |
| Length | 0.25 ft, 0.083 ft, 0.125 ', 5 ' |
| Length | 0.5 ' |
| Length [x] | 4 " |
| Length [x] | 0.333 ft |
| Length [x] | 101.6 mm |
| Material | Polyester |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Recovered Wall Thickness | 0.055 in |
| Recovered Wall Thickness | 1.4 mm |
| Shelf Life | 48 Months |
| Shelf Life Start | Date of Manufacture |
| Shrink Temperature | 170 °C |
| Shrinkage Ratio | 2 to 1 |
| Spool Size | 15.2 m |
| Spool Size | 50 ft |
| Storage/Refrigeration Temperature [Max] | 80 °F, 27 °C |
| Storage/Refrigeration Temperature [Min] | 10 °C |
| Type | Tubing, Flexible |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 117.03 | |
| 5 | $ 109.71 | |||
| 10 | $ 102.40 | |||
| 25 | $ 97.28 | |||
| 50 | $ 4.77 | |||
| 50 | $ 1.98 | |||
| 50 | $ 1.36 | |||
| 50 | $ 6.89 | |||
| 50 | $ 95.78 | |||
| 100 | $ 1.85 | |||
| 100 | $ 1.25 | |||
| 100 | $ 6.33 | |||
| 100 | $ 4.38 | |||
| 150 | $ 6.07 | |||
| 150 | $ 4.17 | |||
| 150 | $ 1.19 | |||
| 250 | $ 4.05 | |||
| 250 | $ 1.12 | |||
| 250 | $ 1.67 | |||
| 350 | $ 1.08 | |||
| 500 | $ 1.60 | |||
| 500 | $ 1.03 | |||
| 1250 | $ 1.02 | |||
| 1250 | $ 1.57 | |||
| Digi-Spool®, Continuous Spool | 1 | $ 37.57 | ||
| 2 | $ 34.55 | |||
| 3 | $ 32.90 | |||
| 5 | $ 30.93 | |||
| 7 | $ 29.70 | |||
| 10 | $ 28.45 | |||
| 25 | $ 25.47 | |||
| 50 | $ 23.42 | |||
| 100 | $ 23.27 | |||
| Spool | 50 | $ 3.67 | ||
| 100 | $ 3.38 | |||
| 150 | $ 3.22 | |||
| 250 | $ 3.04 | |||
Description
General part information
PSTH 1 1/4 Series
Heat Shrink Tubing, Flexible 1.250" (31.75mm) 2 to 1 Black 0.333' (101.60mm, 4.00")
