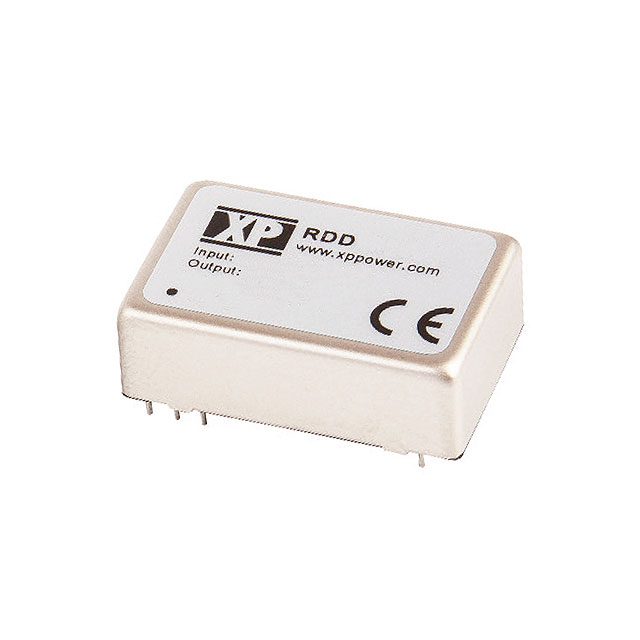

RDD0824D12

Active

XP POWER

DC DC CONVERTER +/-12V 8W

Search across all available documentation for this part.

Active

XP POWER

DC DC CONVERTER +/-12V 8W

Technical Specifications

Parameters and characteristics for this part

Part	Features	Type	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Number of Outputs	Voltage - Isolation	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Power (Watts)	Applications	Voltage - Output 1	Control Features	Package / Case	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Min]
XP POWER RDD0824S05	OCP OVP Remote On/Off SCP	Isolated Module	86 %	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	1	3000 V	24-DIP Module 8 Leads	Through Hole	85 °C	-40 °C	13 V	70 V	1.6 A	8 W	Railway	5 V	Active High Enable
XP POWER RDD0824D15	OCP OVP Remote On/Off SCP	Isolated Module	86 %	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	2	3000 V	24-DIP Module	Through Hole	85 °C	-40 °C	13 V	70 V		8 W	Railway	15 V	Active High Enable	9 PC Pad	-15 V	265 mA	265 mA
XP POWER RDD0824D12	OCP OVP Remote On/Off SCP	Isolated Module	85 %	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	2	3000 V	24-DIP Module	Through Hole	85 °C	-40 °C	13 V	70 V	335 mA	8 W	Railway	12 V	Active High Enable	9 PC Pad	-12 V			335 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 335mA, 335mA 13V - 70V Input
