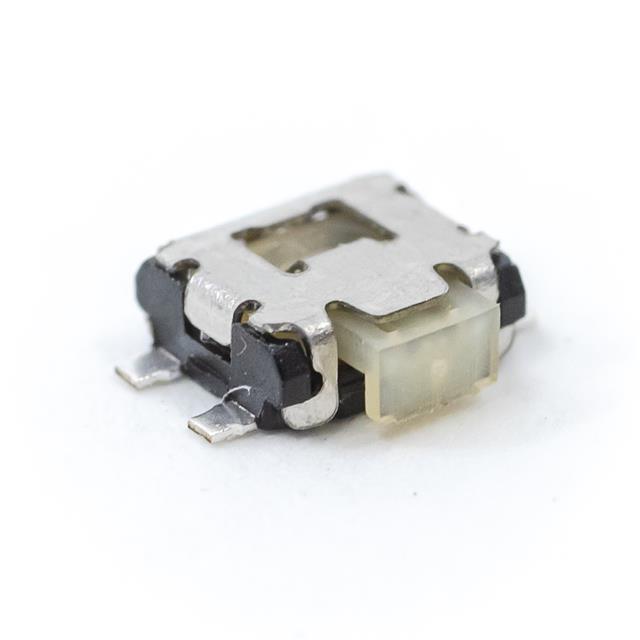

TL1016ABF220QG

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Switch Function	Actuator Type	Termination Style	Contact Rating @ Voltage	Switch Travel	Actuator Orientation	Operating Force	Circuit	Actuator Length, Right Angle	Outline [x]	Outline [y]	Mounting Type
E-Switch TL1016AAF220QG	85 °C	-40 °C	100000 Cycles	Off-Mom	Rectangular Button	Gull Wing	0.05 A 12 VDC	0.2 mm	Side Actuated	220 gf	SPST-NO	3.55 mm	4.7 mm	2.9 mm	Surface Mount Right Angle
E-Switch TL1016BAF220QG	85 °C	-40 °C	100000 Cycles	Off-Mom	Rectangular Button	Gull Wing	0.05 A 12 VDC	0.2 mm	Side Actuated	220 gf	SPST-NO	3.55 mm	4.7 mm	2.9 mm	Surface Mount Right Angle
E-Switch TL1016ABF220QG	85 °C	-40 °C	100000 Cycles	Off-Mom	Rectangular Button	Gull Wing	0.05 A 12 VDC	0.2 mm	Side Actuated	220 gf	SPST-NO	3.55 mm	4.7 mm	2.9 mm	Surface Mount Right Angle
E-Switch TL1016ABF160QG	85 °C	-40 °C	100000 Cycles	Off-Mom	Rectangular Button	Gull Wing	0.05 A 12 VDC	0.2 mm	Side Actuated		SPST-NO	3.55 mm	4.7 mm	2.9 mm	Surface Mount Right Angle
E-Switch TL1016BBF160QG	85 °C	-40 °C	100000 Cycles	Off-Mom	Rectangular Button	Gull Wing	0.05 A 12 VDC	0.2 mm	Side Actuated		SPST-NO	3.55 mm	4.7 mm	2.9 mm	Surface Mount Right Angle
E-Switch TL1016BBF220QG	85 °C	-40 °C	100000 Cycles	Off-Mom	Rectangular Button	Gull Wing	0.05 A 12 VDC	0.2 mm	Side Actuated	220 gf	SPST-NO	3.55 mm	4.7 mm	2.9 mm	Surface Mount Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	14000	$ 0.18

General part information

Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle

Technical documentation and resources

No documents available
