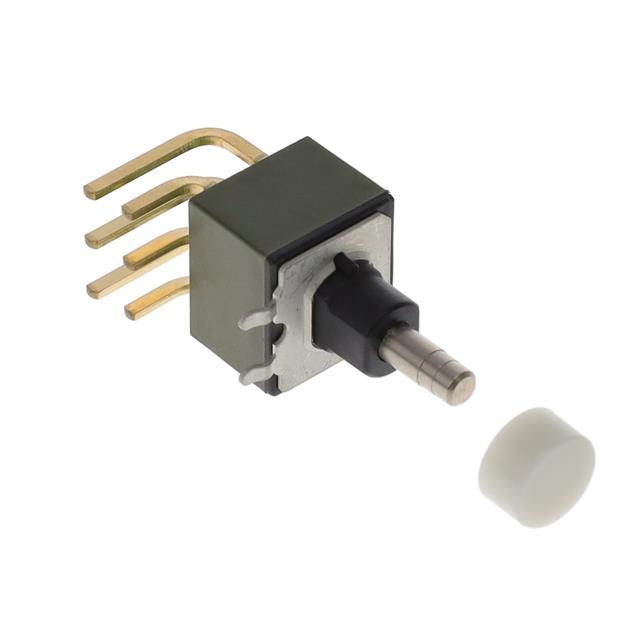

M2B25AA5G30-HB

Active

NKK Switches

PROCESS SEALED MINIATURE PUSHBUTTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2B25AA5G30-HB

Active

NKK Switches

PROCESS SEALED MINIATURE PUSHBUTTON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2B25AA5G30-HB

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPDT
Color - Actuator/Cap	White
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Process Sealed
Mechanical Life	200000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

M2B25AA Series

Part	Mechanical Life	Electrical Life	Current Rating (Amps)	Voltage Rating - DC	Circuit	Voltage Rating - AC	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Type	Features	Termination Style	Mounting Type	Actuator Type	Switch Function	Color - Actuator/Cap
NKK Switches M2B25AA5G13	200000 Cycles	100000 Cycles	0.4 VA	28 V	DPDT	28 V	No Marking	-30 ░C	85 °C	Standard	Process Sealed	PC Pin	Through Hole	Plunger for Cap	On-Mom
NKK Switches M2B25AA5A13	200000 Cycles	25000 Steps		30 V	DPDT	125 V	No Marking	-30 ░C	85 °C	Standard	Process Sealed	PC Pin	Through Hole	Plunger for Cap	On-Mom
NKK Switches M2B25AA5W30-FB	200000 Cycles	25000 Steps		30 V	DPDT	125 V	No Marking	-30 ░C	85 °C	Standard	Process Sealed	PC Pin	Through Hole Right Angle	Button Round	On-Mom	White
NKK Switches M2B25AA5G40-FC	200000 Cycles	100000 Cycles	0.4 VA	28 V	DPDT	28 V	No Marking	-30 ░C	85 °C	Standard	Process Sealed	PC Pin	Right Angle Through Hole Vertical	Button Round	On-Mom	Red
NKK Switches M2B25AA5W30-FA	200000 Cycles	25000 Steps		30 V	DPDT	125 V	No Marking	-30 ░C	85 °C	Standard	Process Sealed	PC Pin	Through Hole Right Angle	Button Round	On-Mom	Black
NKK Switches M2B25AA5G30-HB	200000 Cycles	100000 Cycles	0.4 VA	28 V	DPDT	28 V	No Marking	-30 ░C	85 °C	Standard	Process Sealed	PC Pin	Through Hole Right Angle	Button Round	On-Mom	White
NKK Switches M2B25AA5G13/CUL	200000 Cycles	100000 Cycles	0.4 VA	28 V	DPDT	28 V	No Marking	-30 ░C	85 °C	Standard	Process Sealed	PC Pin	Through Hole	Plunger for Cap	On-Mom
NKK Switches M2B25AA5G40	200000 Cycles	100000 Cycles	0.4 VA	28 V	DPDT	28 V	No Marking	-30 ░C	85 °C	Standard	Process Sealed	PC Pin	Right Angle Through Hole Vertical	Plunger for Cap	On-Mom
NKK Switches M2B25AA5W03	200000 Cycles	25000 Steps		30 V	DPDT	125 V	No Marking	-30 ░C	85 °C	Standard	Process Sealed	PC Pin	Through Hole	Plunger for Cap	On-Mom
NKK Switches M2B25AA5G30	200000 Cycles	100000 Cycles	0.4 VA	28 V	DPDT	28 V	No Marking	-30 ░C	85 °C	Standard	Process Sealed	PC Pin	Through Hole Right Angle	Plunger for Cap	On-Mom

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.13
		10	$ 10.03
		100	$ 8.77
		1000	$ 7.35
Newark	Each	1	$ 17.52
		5	$ 16.34
		10	$ 15.03
		25	$ 13.71
		50	$ 12.40
		100	$ 10.96
		250	$ 9.84

Description

General part information

M2B25AA Series

Pushbutton Switch DPDT Standard Through Hole, Right Angle

Documents

Technical documentation and resources
