1061847

Active

SICK, Inc.

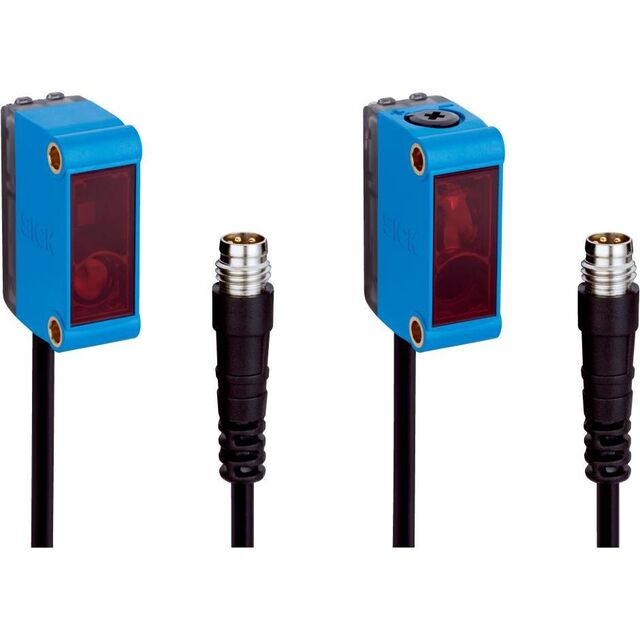

SENSOR THROUGH-BEAM 15M PNP

Search across all available documentation for this part.

Active

SICK, Inc.

SENSOR THROUGH-BEAM 15M PNP

Technical Specifications

Parameters and characteristics for this part

Part	Connection Method	Output Configuration	Cable Length	Cable Length	Ingress Protection	Response Time	Sensing Distance	Sensing Distance	Light Source	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]
SICK, Inc. 1061847	Cable with Connector	PNP	11.81 in	30 cm	IP67	500 µs	15 m	590.551 in	RED (650nm)	-25 °C	55 °C	Through-Beam	30 VDC	10 VDC
SICK, Inc. 1060791	Cable	NPN	78.74 in	2 m	IP67	500 µs	15 m	590.551 in	RED (650nm)	-25 °C	55 °C	Through-Beam	30 VDC	10 VDC
SICK, Inc. 1064653	Cable	NPN	78.74 in	2 m	IP67	500 µs	14.5 m	570.866 in	Infrared	-25 °C	55 °C	Through-Beam	30 VDC	10 VDC
SICK, Inc. 1054852	Cable with Connector	NPN	11.81 in	30 cm	IP67	500 µs	15 m	590.551 in	RED (650nm)	-25 °C	55 °C	Through-Beam	30 VDC	10 VDC
SICK, Inc. 1052451	Connector M8	NPN			IP67	500 µs	15 m	590.551 in	RED (650nm)	-25 °C	55 °C	Through-Beam	30 VDC	10 VDC
SICK, Inc. 1054835	Cable with Connector	NPN	11.81 in	30 cm	IP67	500 µs	10 m	393.701 in	RED (650nm)	-25 °C	55 °C	Through-Beam	30 VDC	10 VDC
SICK, Inc. 1054833	Cable with Connector	NPN	11.81 in	30 cm	IP67	500 µs	15 m	590.551 in	RED (650nm)	-25 °C	55 °C	Through-Beam	30 VDC	10 VDC
SICK, Inc. GSE6-P4112	Connector M8	NPN - Dark-ON/Light-ON			IP67 IP69K	200 µs	10 mm	0.394 in	RED (650nm)	-10 °C	50 °C	Through-Beam	30 VDC	10 VDC
SICK, Inc. 1064675	Cable	NPN	78.74 in	2 m	IP67	500 µs	14.5 m	570.866 in	Infrared	-25 °C	55 °C	Through-Beam	30 VDC	10 VDC
SICK, Inc. 1061397	Connector M8	NPN			IP67	500 µs	10 m	393.701 in	RED (650nm)	-25 °C	55 °C	Through-Beam	30 VDC	10 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 174.98

General part information

Through-Beam Optical Sensor 590.551" (15m) PNP

Technical documentation and resources
