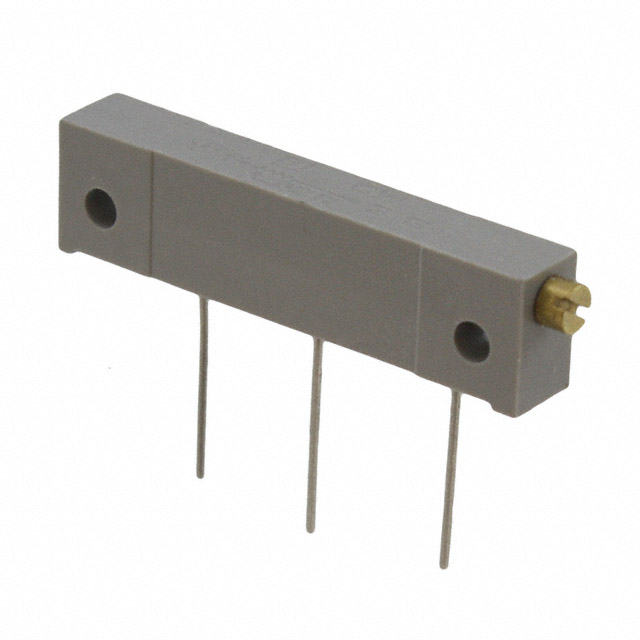

78PR10KLF
ActiveTT Electronics/BI
TRIMMER 10K OHM 1W PC PIN SIDE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
78PR10KLF
ActiveTT Electronics/BI
TRIMMER 10K OHM 1W PC PIN SIDE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 78PR10KLF |
|---|---|
| Adjustment Type | Side Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 22 |
| Power (Watts) | 1 W |
| Resistance | 10000 Ohms |
| Resistive Material | Cermet |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [x] | 31.75 mm |
| Size / Dimension [y] | 0.195 in |
| Size / Dimension [y] | 4.95 mm |
| Temperature Coefficient | 100 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.88 | |
| 10 | $ 5.39 | |||
| 25 | $ 4.80 | |||
| 50 | $ 4.51 | |||
| 100 | $ 4.11 | |||
| 250 | $ 3.33 | |||
| 500 | $ 3.14 | |||
| 1000 | $ 2.94 | |||
Description
General part information
78PR Series
10 kOhms 1W PC Pins Through Hole Trimmer Potentiometer Cermet 22.0 Turn Side Adjustment
