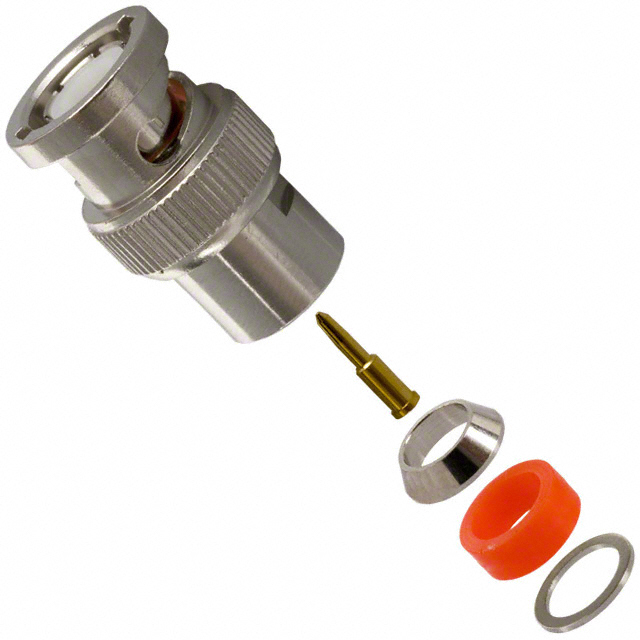

31-2-RFX

Active

Amphenol RF

CONN BNC PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	31-2-RFX

Body Finish	Nickel
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polyoxymethylene (POM) Acetal
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Contact, 1 Clamp, 1 Washer, 1 Braid Clamp, 1 Gasket, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	500 V

Part	Number of Ports	Dielectric Material	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Includes	Cable Group	Shield Termination	Body Finish	Connector Type	Impedance	Contact Termination	Center Contact Material	Connector Style	Insertion Loss	Mounting Type	Mating Cycles	Center Contact Plating	Housing Color	Voltage Rating	Fastening Type
Amphenol RF 31-2-RFX	1	Polyoxymethylene (POM) Acetal	Brass	-65 ░C	165 °C	4 GHz	1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Clamp	Nickel	Male Pin Plug	50 Ohms	Solder	Brass	BNC	0.2 dB	Free Hanging (In-Line)	500	Gold	Silver	500 V	Bayonet Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
