UNC 2-4-6-BLUE/WHITE

Active

LMB Heeger Inc.

CABINET ALUM BLU/WHT 6"L X 4"W

Search across all available documentation for this part.

Active

LMB Heeger Inc.

CABINET ALUM BLU/WHT 6"L X 4"W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

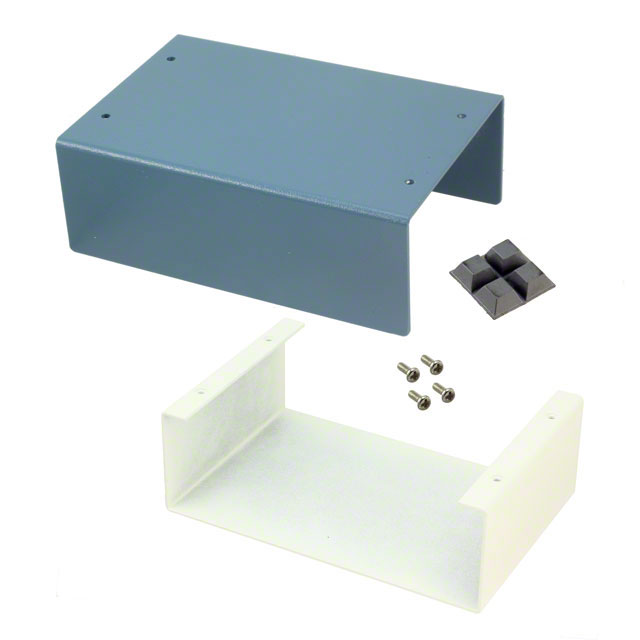

Cabinet Metal, Aluminum Blue, White Split Sides 6.000" L x 4.000" W (152.40mm x 101.60mm) X 2.000" (50.80mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	UNC 2-4-6-BLUE/WHITE	UNC 2 Series

Area (L x W)	155 cm˛	155 - 232 cm˛
Area (L x W)	24 in˛	24 in˛
Area (L x W)	-	232 cm˛
Area (L x W)	-	36 in˛
Area (L x W)	-	36 in²
Color	Blue, White	Blue, White, Unpainted
Container Type	Cabinet	Cabinet
Design	Split Sides	Split Sides, Slanted Top
Features	Separate Panel or Cover Thickness	Separate Panel or Cover Thickness
Height [z]	50.8 mm	50.8 - 69.85 mm
Height [z]	2 in	2 - 2.75 in
Material	Metal, Aluminum	Metal, Aluminum
Size / Dimension	-	152.4 mm
Size / Dimension [x]	152.4 mm	152.4 mm
Size / Dimension [x]	6 in	6 in
Size / Dimension [y]	101.6 mm	101.6 mm
Size / Dimension [y]	4 "	4 - 6 "
Thickness	0.09 in	0.09 in
Thickness	2.29 mm	2.29 mm

CABINET ALUM BLU/WHT 6"L X 4"W

Part	Area (L x W)	Area (L x W)	Thickness	Thickness	Material	Features	Color	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height [z]	Height [z]	Design	Container Type	Size / Dimension [y]	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W)
LMB Heeger Inc. UNC 2-4-6-BLUE/WHITE	155 cm˛	24 in˛	0.09 in	2.29 mm	Aluminum, Metal	Separate Panel or Cover Thickness	Blue, White	152.4 mm	6 in	101.6 mm	4 "	50.8 mm	2 in	Split Sides	Cabinet
LMB Heeger Inc. UNC 2 3/4-6-6 PLAIN			0.09 in	2.29 mm	Aluminum, Metal	Separate Panel or Cover Thickness	Unpainted	152.4 mm	6 in		6 "	69.85 mm	2.75 in	Slanted Top	Cabinet	152.4 mm	232 cm˛	36 in˛
LMB Heeger Inc. UNC 2 3/4-6-6-BLUE/WHITE	232 cm²		0.09 in	2.29 mm	Aluminum, Metal	Separate Panel or Cover Thickness	Blue, White	152.4 mm	6 in		6 "	69.85 mm	2.75 in	Slanted Top	Cabinet	152.4 mm			36 in²
LMB Heeger Inc. UNC 2-4-6 PLAIN	155 cm˛	24 in˛	0.09 in	2.29 mm	Aluminum, Metal	Separate Panel or Cover Thickness	Unpainted	152.4 mm	6 in	101.6 mm	4 "	50.8 mm	2 in	Slanted Top	Cabinet
