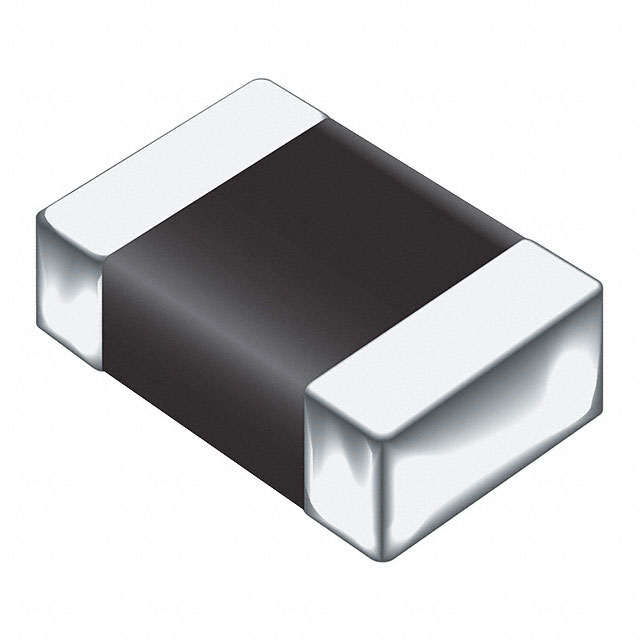

CGA0805MLA-31251E

Active

Bourns Inc.

VARISTOR 39.5V 80A 0805

Search across all available documentation for this part.

Active

Bourns Inc.

VARISTOR 39.5V 80A 0805

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Qualification	Current - Surge	Maximum AC Volts [Max]	Grade	Varistor Voltage (Min) [Min]	Number of Circuits	Capacitance @ Frequency	Maximum DC Volts [Max]	Varistor Voltage (Max) [Max]	Varistor Voltage (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Energy
Bourns Inc. CGA0805MLA-18351E	Surface Mount MLCV	AEC-Q200	120 A	14 V	Automotive	19.8 V	1	350 pF	18 V	25.2 V	22.5 V	125 °C	-55 °C	0805	0.3 J
Bourns Inc. CGA0805MLA-22101E	Surface Mount MLCV	AEC-Q200	30 A	17 V	Automotive	25 V	1	100 pF	22 V	34 V	29.5 V	125 °C	-55 °C	0805	0.1 J
Bourns Inc. CGA0805MLA-31251E	Surface Mount MLCV	AEC-Q200	80 A	25 V	Automotive	35.1 V	1	250 pF	31 V	43.9 V	39.5 V	125 °C	-55 °C	0805	0.3 J

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	4000	$ 0.35

General part information

39.5 V 80 A Varistor 1 Circuit Surface Mount, MLCV 0805 (2012 Metric)
